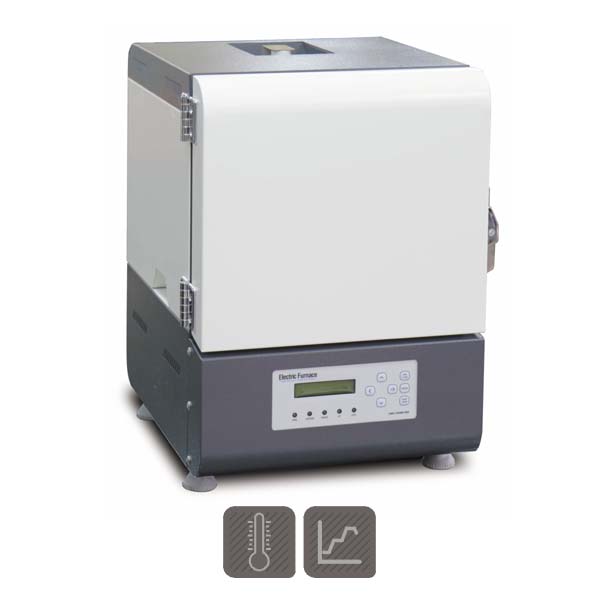

JSR JSMF-120HT Electric Muffle Furnace (1,200°C; 200 x 300 x 200 mm; 3.3 kW)

Chamber Volume (Capacity): 12.0 L

Inner Dims. (W x D x H): 200 x 300 x 200 mm

Outer Dims. (W x D x H): 525 x 565 x 690 mm

No. of Ventilation Damper: 1 EA

Heating Element: KANTHAL A-1

Maximum Temperature: +1,200℃

Operating Temperature: +1,100℃

Temperature Accuracy: ±5.0℃ at +500℃

Temperature Uniformity: ±5.0℃ at +500℃

Heat-up Time (to +800℃): 30 min.

Control System: Programmable PID Control

Memory: 3 Pattern Memory

Segments: 9 ramps and 9 dwells segments

Sensor: CA(K)-Type Sensor

Safety Features: Over-Temperature Cut-Off, Over-Current Cut-Off

Material (Body): Epoxy Powder Coated Steel, 1.0 mm thickness

Material (Chamber): Ceramic Fiber

Electrical Requirement: 220 ± 10% VAC, 50/60Hz, 1-Phase

Heater Capacity: 3.3 kW

Power Rating: 15.2 amps

Plug Configuration: CEE 7/7 Schuko or BS 1363
