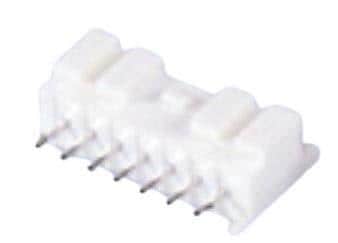

JST Commercial B11B-PASK-1(LF)(SN) Headers PA HEADER (TOP)
Manufacturer: JST Commercial Model: B11B-PASK-1(LF)(SN) - Contact
Pitch: 2 mm (0.079 in)
Application: Wire-to-Board
Housing Color: Natural
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 250 VAC/DC
Contact Plating: Tin
Contact Material: Copper
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Crimp
Flammability Rating: UL94V-0
Number of Positions: 11 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 3 mm (0.118 in)
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
