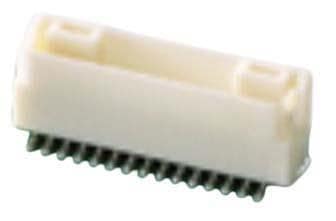

JST Commercial BM08B-NSHSS-TBT(LF)(SN) Crimp Style NSH HEADER (SMT TOP)
Manufacturer: JST Commercial Model: BM08B-NSHSS-TBT(LF)(SN) - Contact
Pitch: 1 mm (0.039 in)
Wire Gauge: 32 AWG to 28 AWG
Housing Color: Natural
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Straight
Mounting Style: SMD/SMT
Number of Rows: 1 Row
Voltage Rating: 50 VAC/DC
Contact Plating: Tin
Contact Material: Copper
Housing Material: Polyamide (PA)
Termination Style: Crimp
Flammability Rating: UL94V-0
Number of Positions: 8 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
