Order code: 902030/31-380-1003-1-6-100-104/000

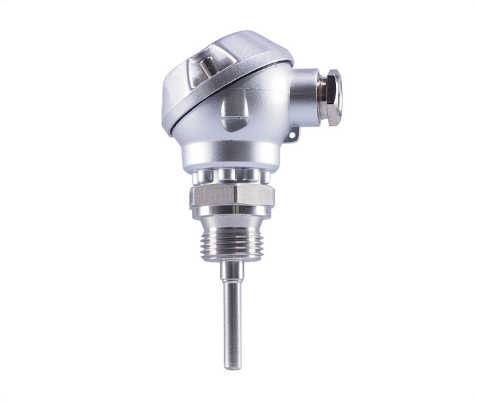

Screw-in RTD temperature probe with terminal head, form J, with stepped protection tube for air measurement (with 1× Pt to Ø 2.6 mm, with 2× Pt to Ø 3.5 mm)
Operating temperature in °C: -50~+200°C
Measuring insert: 1× Pt100 in two-wire circuit
Tolerance class according to DIN EN 60751:2009 / IEC 60751:2008: Class B (standard) (-50 to +500 °C)
Protection tube diameter D in mm: Ø 6 mm (standard)
Insertion length EL in mm (EL 50 to 1000) (max. 800 mm for basic type 902030/11): 100 mm
Process connection (further process connections upon request): Screw connection G 1/2
Extra codes: None
