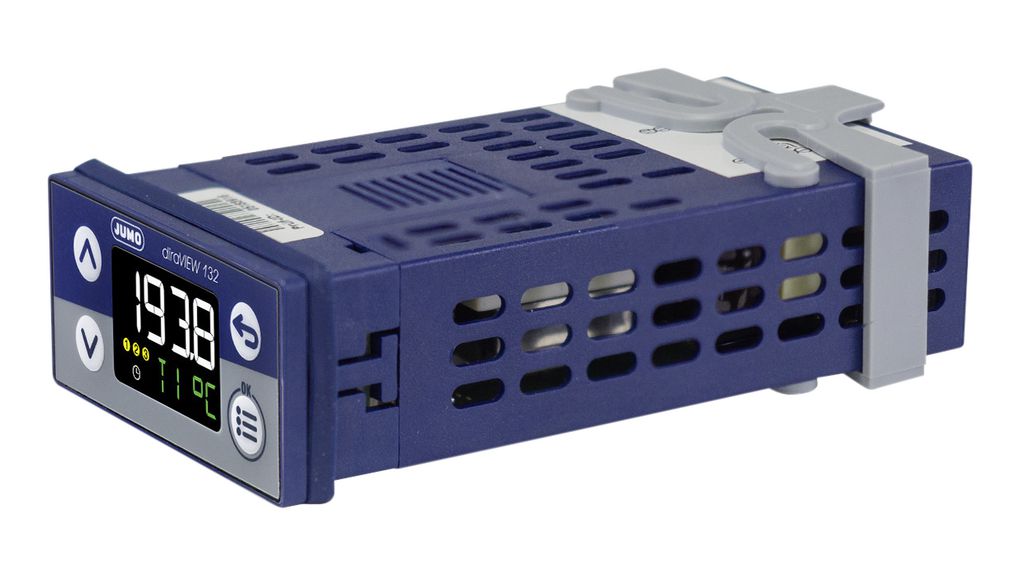

Jumo diraVIEW 132 Digital indicator (110 ~ 240 VAC, 48 x 24 mm, Part No.: 00694781)

Order code: 701510/8-0000-23/000

Analog input

- Thermocouples

- RTD temperature probe

- Resistance transmitter and resistor/potentiometer

- Voltage, current (standard signals)

Dimensions: 48 mm × 24 mm

1 analog input, 2 digital inputs (digital input 1, alternative to logic output), 1 relay (N/O contact), 1 logic output 0/14 V (alternative to digital input 1) incl. timer, min/max value display, hold function, taring function

Version: Standard with default settings

Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz

Extra codes:  Without extra code
