Order code: 401002/000-459-405-502-20-601-23/000
Input: 0 to 10 bar relative pressure
Output: 4 to 20 mA, two-wire
Process connection: 502 G 1/4 DIN EN 837
Process connection material: CrNi (stainless steel)
Material seal: FKM (standard)
Electrical connection: Quickon
Extras codes: None

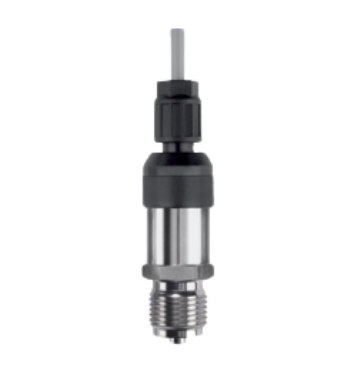

This pressure transmitter is a basic product and acquires the relative pressure of liquid as well as gaseous media. The ceramic sensor has a long-term stability of under 0.2 %. It is used in particular in mechanical and plant engineering.
