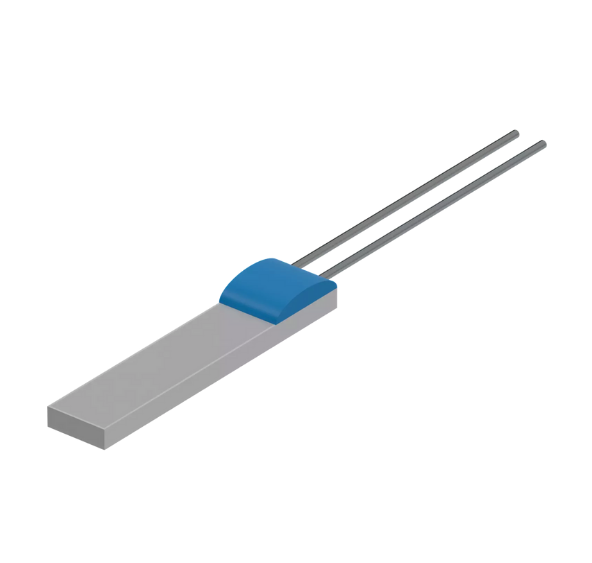

Jumo PCW-S-PtNi Platinum-chip temperature sensors (-70 ~ +400 °C, Part No.: 00309681)
Manufacturer: Jumo Model: PCW-S-PtNi P/N: 906135/0-2-10-1.3-1000-10-1-010 - Contact
Order code: 906135/0-2-10-1.3-1000-10-1-010
Temperature range: -70 to +400 °C
Version: Standard
Substrate height S: 0.64mm
Diameter of connection wire D1: 0.2mm
Width B: 2.0 mm
Length L: 10 mm
Height H: 1.3 mm
Nominal value of resistance R0:1000 Ω (Pt1000)
Wire length L1: 10.0 mm (standard)
Type of packaging: Clamshell packaging (standard), packaging unit 100 pieces, loose
Tolerance class: F 0.1
Platinum chip temperature sensors of the PCW design type belong to the category of temperature sensors that were made using thin-film technology. They are typically used in the following industries: heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles. The sensors are available as Pt100, Pt500, Pt1000.
Datasheet
