KAIP CH17-T Precision Standard Capacitance Box (1pF~1μF) | EMIN.COM.MM

Other Capacitor
KAIP CH17-T Precision Standard Capacitance Box (1pF~1μF)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

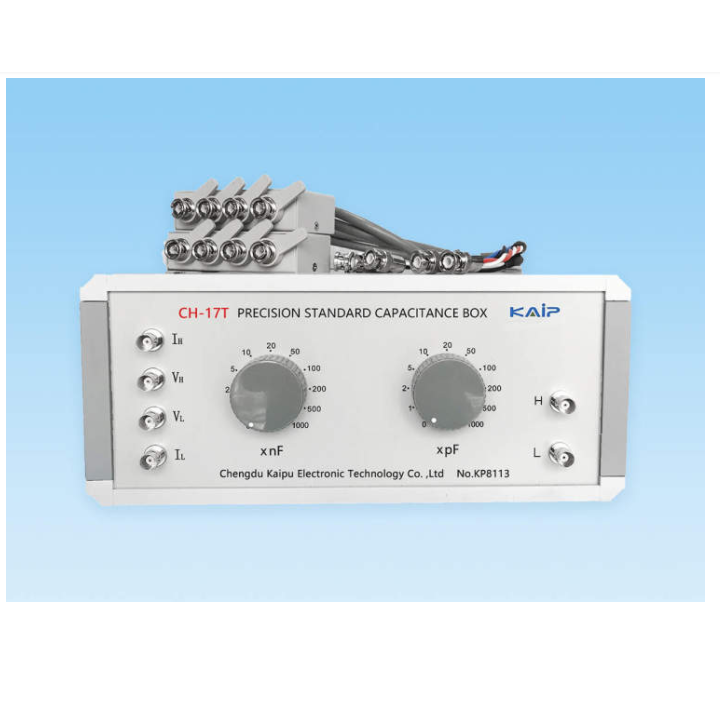

Product image

KAIP CH17-T Precision Standard Capacitance Box (1pF~1μF)

ManufacturerKAIP(View more products from this manufacturer)

ModelCH17-T

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Operation conditions

Ambient temperature: (23±2) °C

Relative humidity: （50±10）%

1. Capacitance range: 1pF,2pF,5pF,10pF,20pF,50pF,100pF,200pF,500pF,1nF,2nF,5nF,10nF,20nF,50nF,100nF,200nF,500nF,1μF

2. Digits of reading dial: Two-dial

3. Zero capacitance: <0.00005pF

4. Error limit: ±0.03%

5. Loss tangent (D): ≤5×10-4

6. Output mode: Three-terminal/Four-terminal-pairBNC output

7. Beacon frequency/operating frequency (f): 1,000Hz

8. Maximum operating voltage (U): ≤100V

9. Overall dimension: 310mm×260mm×140mm

Datasheet

Features

- CH-17T precision standard capacitance box has 1, 2, and 5 alternating step sizes in capacitance change. This capacitance box operates easily and rapidly, and is convenient to carry, with small volume, high performance and light weight.

- CH-17Tprecision capacitance box adopts three-terminal output mode or four-terminal-pair output mode, and realizes wide capacitance range of 1pF～1μF through 2 code switches. The decade readings of any gear within such range have the equivalent high capacitance accuracy and stability (±0.03%). The capacitance box has perfect shielding, with tiny zero capacitance (＜0.00005pF), and is superior to the similar products both at home and abroad. The indicated value of the switch is free from the influence of zero capacitance, and the required capacitance can be directly obtained from the indicated value of the switch in the use. It’s not needed to deduct the zero capacitance from each indicated value, and is quite convenient to use.
