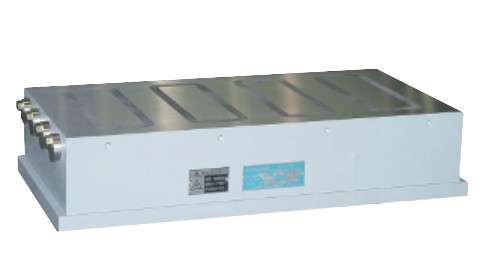

Designed for heavy duty cutting by a milling machine and planomiller. Most suitable for powerful chucking of thick workpieces and high-speed cutting where a large cutting force is exerted.
Nominal Size: 300（11.8）× 600（23.6）[mm(in)]
Work Face [mm(in)]
B1: 300 （11.8）
L1: 600（23.6）
Le: 520（20.4)
Be: 240 （9.44）
Pole Pitch [mm(in)]
P1: 60（2.36)
P2: 52（2.04）
No.of Poles: 5
Mounting Face [mm(in)]
B2: 306 （12.0）
L2: 620（24.4）
h: 20 （0.78）
Height [mm(in)]
H: 110 （4.33）
Mounting Hole [mm(in)]
G: Clamping (No hole)
Voltage: 90 VDC
Current: 1.64A
Mass: 143kg/ 315lb
