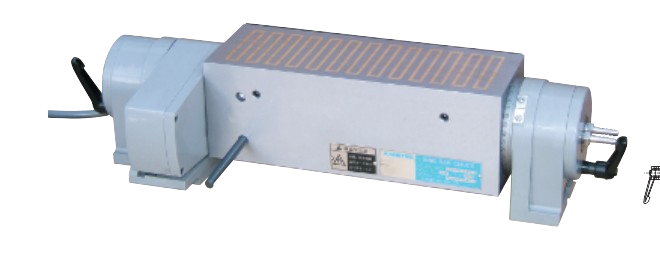

Constructed to enable real-time internal cooling of heat generated when power is applied to the electromagnet, making these chucks suitable for higher precision grinding operation.
Nominal Size: 110（4.33）× 315（12.4）[mm(in)]
Work Face [mm(in)]
B1: 110 （4.33)
L1: 315 （12.4）
Le: 278 （10.9）
H1: 113 （4.44）
Pole Pitch [mm(in)]
P: 11（3＋8）0.43 （0.11＋0.31）
Mounting Face [mm(in)]
L2: 492 （19.3）
Height [mm(in)]
Angle 0°,Min: 138 （5.43）
Cover fully open, Max: 210 （8.26)
Tilt Angle: ー15°‒ ＋45
Angle Accuracy: 0.007/100 max
Voltage: 90 VDC
Current: 0.3A
Mass: 36kg/ 79 lb
