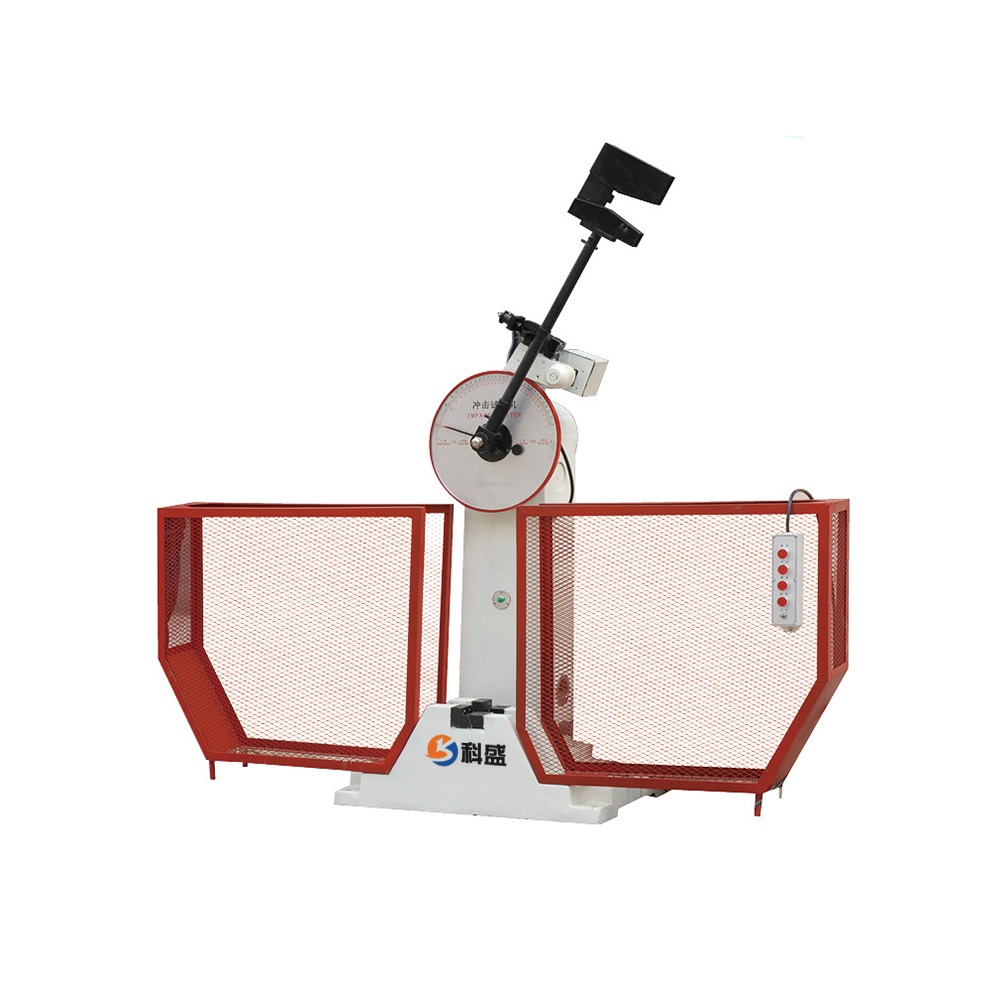

Kason JB-300 Manual Charpy Impact Testing Machine (150 J, 300 J)
Manufacturer: Kason Model: JB-300 - Contact
Impact Energy: 150 J, 300 J
The Distance Between The Pendulum Shaft And Impact Point: 800 mm
Impact Speed: 5.2 m/s
Pre-rising Angle Of The Pendulum: 135°
Specimen Bearer Span: 40+0.2 mm
Round Angle Of The Jaw: R 1.0~1.5 mm
Round Angle Of Impact Edge: R 2.0~2.5 mm
Thickness Of Impact Blade: 16 mm
Angle Accuracy: 0.1°
Standard Specimen Dimension: 10 mm * 10(7.5 or 5) mm * 55 mm
Dimensions (mm): 1000 * 630 * 1520 mm
Net Weight (kg): 320 KG
