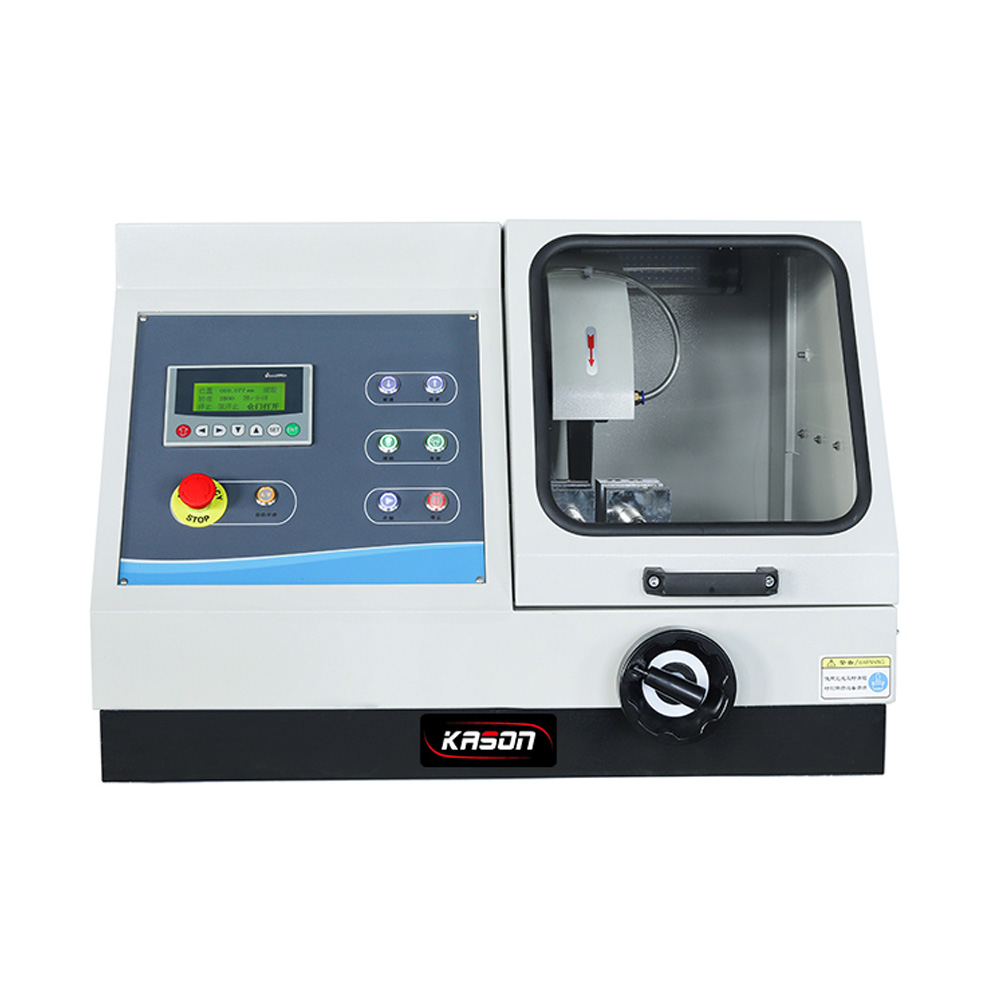

Kason LQ-80Z Manual and Automatic Metallographic Specimen Cutting Machine (ø80mm)
Manufacturer: Kason Model: LQ-80Z - Contact
The Maximum Cutting Diameter: 80mm (Pipe)
The Effective Length Of
The Workpiece: 200mm
Cutting Table Size: 290*300mm
Cutting Sheet Specifications: 250*2.5*32mm
Clamping Table Size: Jig Table Left And Right, Center Cutting Edge
Cutting Speed: 0.1-2.5 mm/s, Automatic cutting mode can be selected: Intermittent cutting (metal work) and Continuous cutting (nonmetal parts)
Cutting Mode: Manual and Automatic
Reset Mode: Automatic Reset
Cooling System: Automatic Water-cooled 2-channel
Water Tank Capacity: 60 L
Spindle Speed: 2200 r / min
Motor Power: 2.2 KW
Dimensions: 950*700*1500mm
Cabinet Dimensions: 440*440*650mm
Power Supply: 380V, 50Hz
Weight: 260 KG
