Max. Load: 200 KN

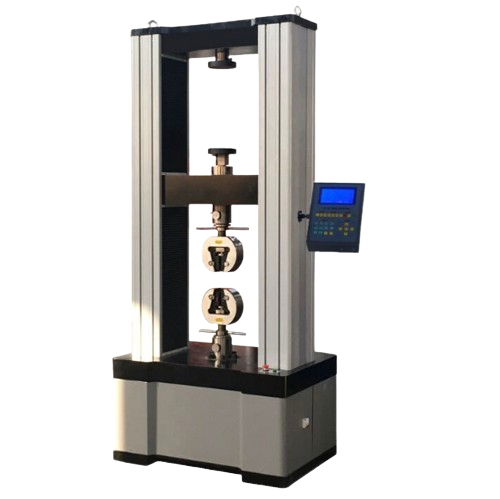

Structure: Four-column Floor Model (Upper Is Compression And Lower Is Tensile)
Control Method: Single Chip Control
Load Accuracy: 1 Class
Load Range: 2%~100%F·S (4KN~200KN)
Displacement Resolution: 0.04um
Test Speed: 1~200mm/min
Tensile Space: 550mm (Can be customized)
Compression Space: 550mm (Can be customized)
Test Width: 600mm (Can be customized)
Power Supply: AC220V±10%, 50Hz (Can be customized)
Grips: Wedge Type, Plate Type And Other Grips As Customers’ Demand
Weight: 1800 KG
Dimension: 1050*700*2421mm
