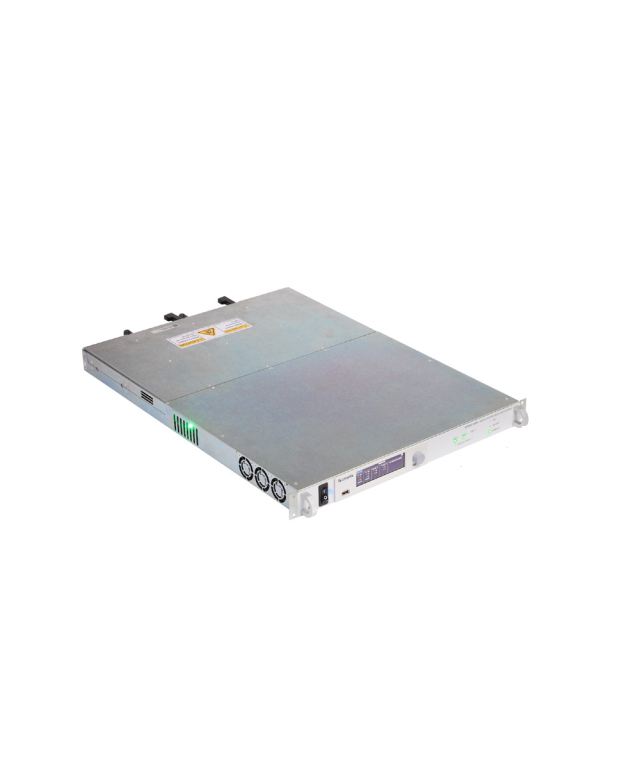

USB Host (Front Panel):
USB 2.0, Type A, support for flash drives. Support FAT32 & exFAT formats.
Capability: Support Firmware Upgrades
USB Device (Rear Panel): USB 3.0, Type C, USBTMC
Ethernet:
RJ-45 Connector: 10/100/1000BASE-T
IP Configuration: static or DHCP (manual or automatic)
IEEE-488.2: Supports IEEE Std 488.2 common commands and status model topology.
Programming:
Embedded Test Script Processor (TSP) scripting engine is accessible from any host interface:
• Responds to individual instrument control commands.
• Responds to high-speed test scripts comprised of remote commands and test script language (TSL) statements (for example, branching, looping, and math)
• Able to execute high-speed test scripts stored in memory without host intervention.
Real Time Clock: 1 year time frame for data retention
Memory (user scripts only): 256 MB (approximately 4 million lines of code)
Front Panel Display:
Multi-Touch Capacitive Touchscreen
Resolution: 480×128 RGB TFT
Additional Control: Rotary Navigation/Control Knob with Encoder Selection
Security Password Protection: 24 Characters
Triggering:
Application: DIGIO & TSP-Link
Input Level: TTL
Input Transition Timing, Max: < 100 ns
Trigger In to Trigger Out: 0.5 µs
Trigger Timer Accuracy: ±200 ns
Acoustic Noise: Sound Pressure Lp, <70 dB(A), at 1 meter, open air
LXI Compliance: Version 1.6 LXI Device Specification 2023 compliant
Power Supply: 100 to 240 VAC, 50–60 Hz (auto sensing), 1000 VA maximum
EMC: Conforms to European Union EMC Directive.
Safety: Conforms to European Union Low Voltage Directive. NRTL Listed to 61010-1
Environmental: Conforms to European Union RoHS Directive
Dimensions: 1.73 in (44 mm) Height × 19.00 in (483 mm) Width × 24.6 in (624 mm) Depth
Weight: 28 lbs. (12.8 kg)
Environment For indoor use only
Altitude: Maximum 6562 ft (2000 m) above sea level
Operating: 0 °C to 50 °C, Max 70% relative humidity. See module specs for additional operating requirements
Storage: -25 °C to 65 °C
Digital I/O Interface
Connector: 30-pin female Terminal (Samtec TFM Series).
Input/Output Pins:18 Bi-directional I/O.
5V Power Supply Pins: 3x Limited to 600 mA @ >4 V, solid state fuse protected.
Ground Pins: 6x
Digital I/O Pins 1-18
ISINK, max. per pin: 250 mA
ISOURCE, max. per pin: 2.0 mA
Absolute VIN:
5.25 V to –0.25 V
Vext ➔ 5 V to 33 V
VIH Min: 3.7 V
VIL Max: 0.7 V
VOL Max at 5 mA Isink: 0.7 V
VOL Max at Isink max: 2.7 V
VOH Min, 0.4 mA source: 2.4 V
