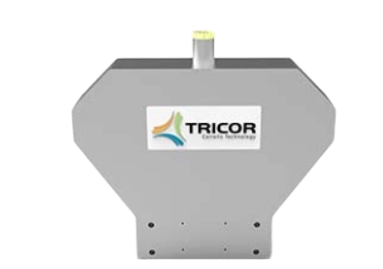

KEM TCMH 0450-HC-SSMS Coriolis Mass Flow Meter for High Pressure Gas Applications (414 bar [6,000 psi]; Sandvik Alloy HP160)

Nominal Flow Rate

20°C air, pressure drop 10 bar:

316 kg/h @ 414 bar [11.6 lb/min @ 6,000 psi]

20°C H2, pressure drop 50 bar:

184 kg/h @ 414 bar [6.75 lb/min @ 6,000 psi]

Pressure Rating: TCMH 0450-HC-SSMS: 414 bar [6,000 psi] (M respectively HP160 = not NACE compliant)

Accuracy

Flow: ±0.5 % of flow rate

Mass Repeatability: ±0.1 % of flow rate

Zero Stability: 0.45 kg/h [0.0165 lb/min]]

Temperature: ±1 °C ±0.5 % of flow rate [±1.8 °F ±0.5 % of flow rate]

Operating conditions-process

Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F]

Medium: Gas

Pressure Effect on Sensitivity: 0.0002 % / bar [0.000014 % / psi]

Operating conditions-environment

Ambient Temperature: -40 °C ... +70 °C [-40 °F ... +158 °F]

Relative Humidity: max. 95 %

Materials (Wetted Parts)

Tubes: Sandvik Alloy HP160

Case: 1.4404 [AISI 316L]

Flow Splitter: 1.4404 [AISI 316L]

Burst protection

Rupture Disc: G1/2”

Connectivity

Flow Meter: 3/8” Autoclave (MP) (others on request)

Signal Cable Connection: Push-Pull connector

For triple Ex approval (Ex3)
