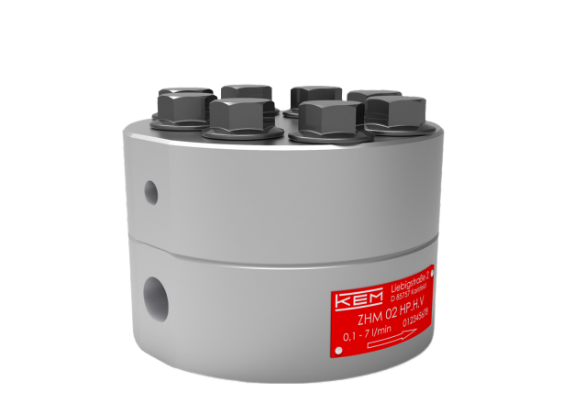

KEM ZHM 02 HP.H.V Gear Flow Meters for High Pressure Applications (0.1 up to 7.0 L/min)

Application : Flow measurement (High Pressure)

Process Medium:

Lubricants, coolant, inhibitors

Abrasive, less lubricating

Medium/high viscosity

Attributes:

Stainless steel body

Stainless steel ball bearing

Tungsten carbide sleeve bearing (optional)

Technical Data – Sizes

Measuring Range(l/min): 0.1 up to 7.0

K-Factor(pulses/l): 4,200

max. Pressure(bar/psi): 1,035 [15,000]

Frequency(Hz): 4.6 up to 700

Weight(kg): 3.4

Technical Data – General

Measuring Accuracy: Up to ±0.1%

Repeatability: ±0.05 % (under the same conditions)

Linearity: ±0.5 % of actual flow (viscosity ≥ 30 mm²/s)

Materials

Housing: as per DIN 1.4404 [AISI 316L]

Gears: as per DIN 1.4122, 1.4501 [AISI F55]

Bearing: Stainless steel ball bearing | Tungsten carbide sleeve bearing

Seals: FKM, FFKM

Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)

Dimensions: See dimensional drawing (In details)

See datasheet for choosing suitable configurations!
