Application: Filling processes
Process Medium:
Lubricants, oils, grease
Lubricating
Medium/high viscosity
Attributes:
Stainless steel body
Stainless steel ball bearing
Bigger tolerances
Technical Data – Sizes
Measuring Range (l/min): 5.0 up to 150
K-Factor (pulses/l): 134
max. Pressure (bar/psi): 250 [3,600]
Frequency (Hz): 11 up to 340
Weight (kg): 23
Technical Data – General
Measuring Accuracy: Default: ±0.5 %; Premium: ±0.25 %
Repeatability: ±0.05 % (under the same conditions)
Materials
Housing: as per DIN 1.4305 [AISI 303]
Gears: as per DIN 1.4122
Bearing: Stainless Steel Ball bearing
Thread: Metric
Sensor Ports: M14x1.5 & Plug-in (frequency doubling, direction detection)
Seals: FKM
Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)

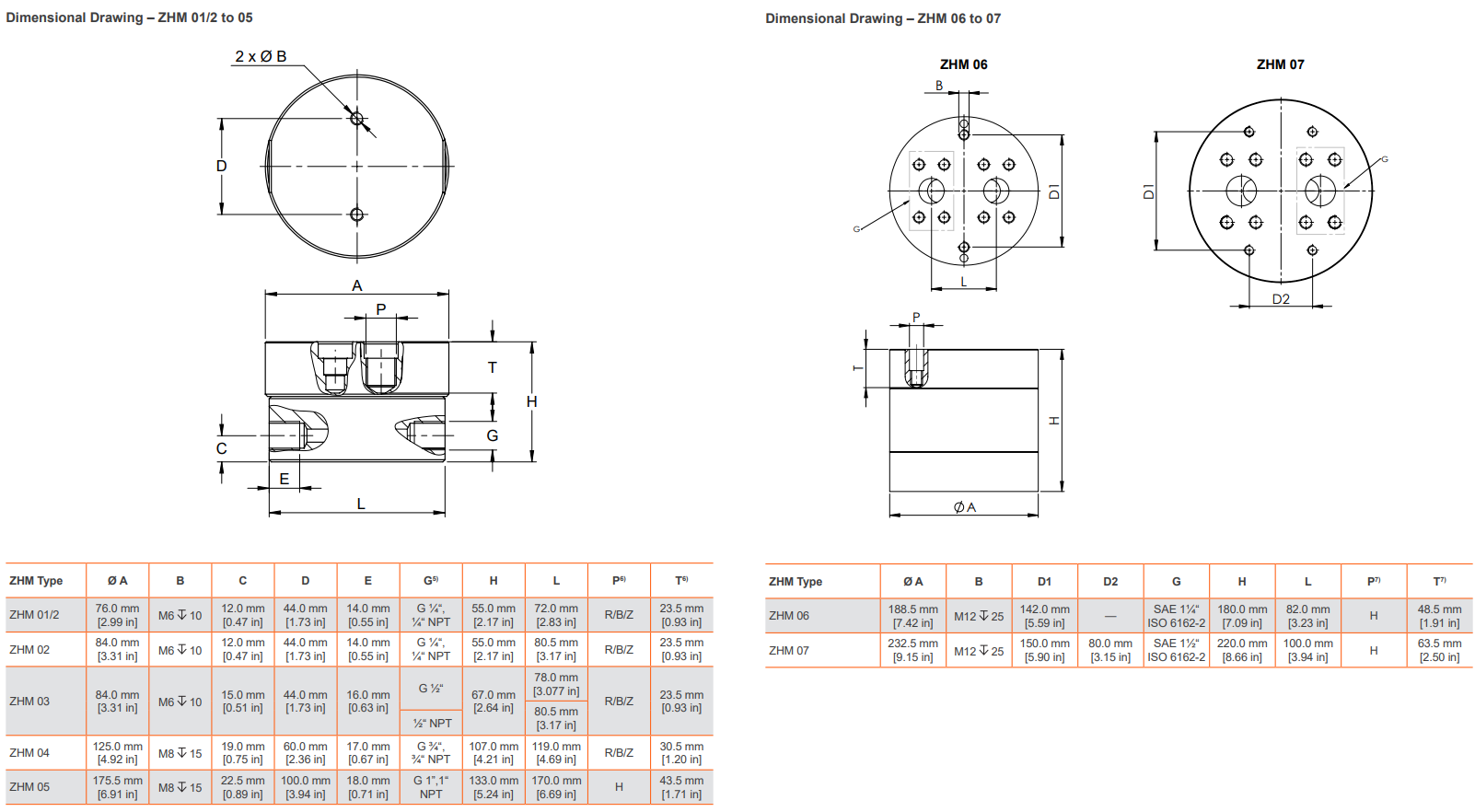

Dimensions: See dimensional drawing (In details)
See datasheet for choosing suitable configurations!
Datasheet
