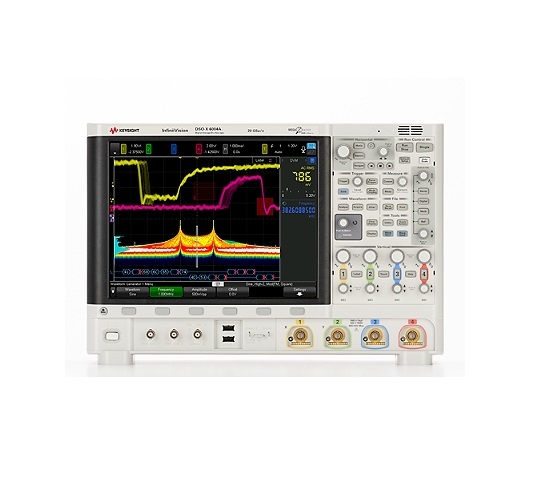

KEYSIGHT DSOX6004A InfiniiVision Oscilloscope (1 GHz (option upgrade up to 2,5Ghz, 4Ghz, 6Ghz); 4 channels; 10 GSa/s)
Manufacturer: KEYSIGHT Model: DSOX6004A Guarantee: 12 Month - Contact
bandwidth: 1 GHz (option upgrade up to 2,5Ghz, 4Ghz, 6Ghz)
Input channels: 4
Maximum sample rate: 20 GSa/s half channels, 10 GSa/s full channels
Maximum memory depth: 4 Mpts half channels, 2 Mpts all channels
Display size and type: 12.1-inch capacitive multi-touch/gesture-enabled display
Waveform update rate: > 450,000 waveforms per second
Typical noise floor at 1 mV/div, 50 Ω: 115 μVrms
Dimensions: 425 mm W x 288 mm H x 148 mm D
Weight Net: 6.8 kg (15 lbs.), Shipping: 11.3 kg (25 lbs.)
