Bandwidth: 250 MHz
Maximum differential measurement range
±8.4 Volts peak on 17:1 auto attenuation ranges
±42 Volts peak on 85:1 auto attenuation ranges
Imput impendance: 1.7 MΩ // 1.5 pF

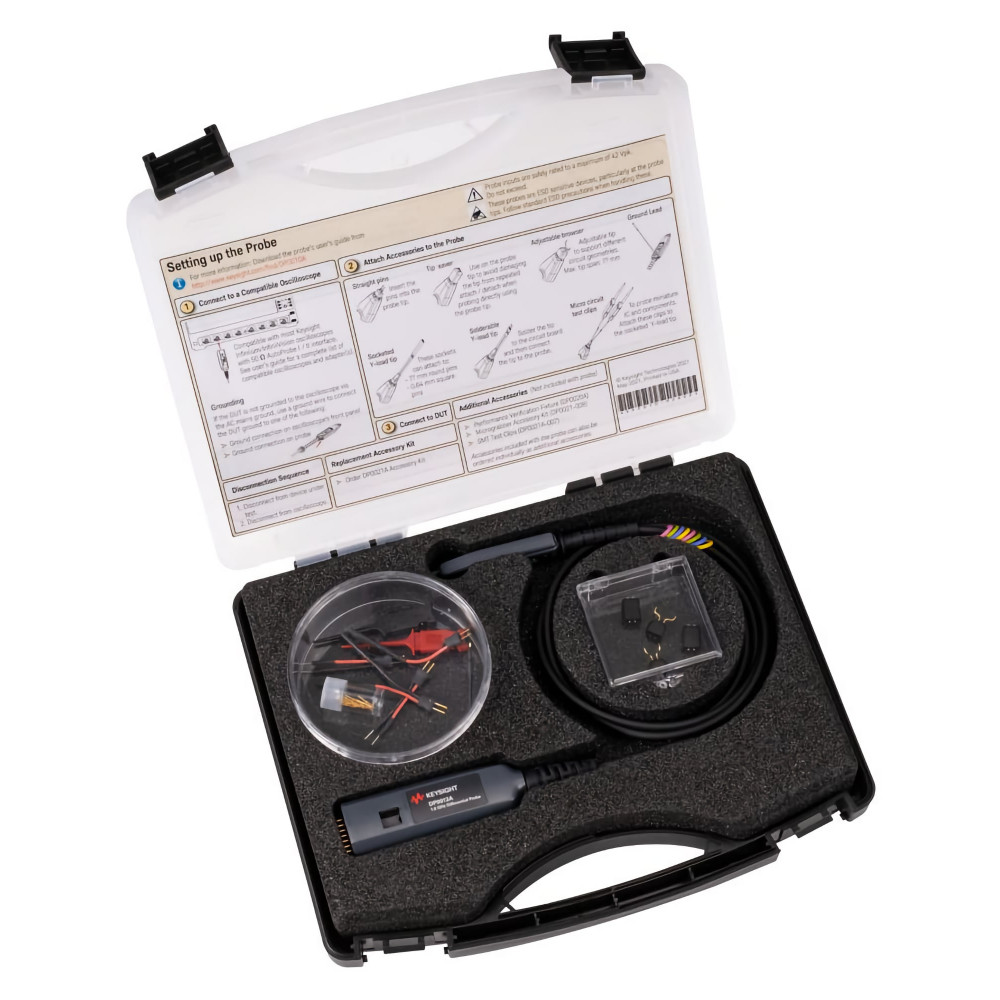

The DP001xA Series differential active probes provide the superior general-purpose differential signal measurements that’s required for many of today’s high-speed power-related measurements such as motor drives, automotive differential bus measurements, and high-speed digital systems design.
The DP001xA Series differential active probes are available in bandwidth models ranging from 250 MHz up to 1.7 GHz with a wide input dynamic range and a probe offset range up to ±60 volts.
The DP0010A 250 MHz model is recommended for automotive differential serial buses including CAN, CAN FD, and FlexRay. In addition, there is an optional automotive probing accessory available to make it easy to connect to subD-DB9 connectors in the prototyping environment. The DP0013A 1.7 GHz model provides the highest input voltage measurement range (±42 Volts) at this bandwidth.
