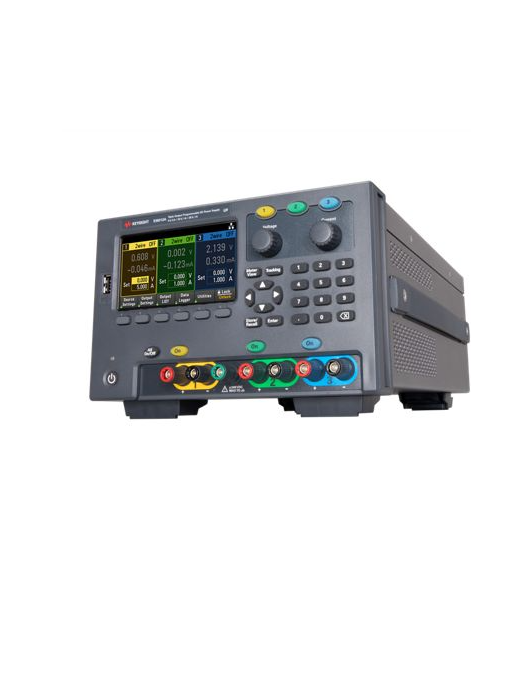

Power output: 80 W
Output Rating:
Output 1: 0 to 6 V, 0 to 5 A
Output 2: 0 to 25 V, 0 to 1 A
Output 3: 0 to 25 V, 0 to 1 A
Ripple & Noise (20 Hz to 20 MHz)
Normal Mode Voltage: <350 µVrms/ 2 mV p-p
Normal mode current: <2 mA rms, <1 mArms, <500 µA rms
Overvoltage protection (OVP): 0.20% +0.1V & 0.20% +0.4 V
Command processing time: < 10 ms
Accuracy 12 months (23 ºC ± 5 ºC)
Current 0.04% +3 mA & 0.04% +2 mA
Voltage 0.03% +2 mV & 0.03% +5 mV
AC input: AC 100- 230 V, 250 VA
includes over voltage, over current, and over temperature protection
Three independent outputs in one instrument saves maintenance cost and bench space
Display: 4.3-inch LCD color show the voltage and current of all three channels at the same time
Included accessories: Power cord, output voltage wire, instruction manual
