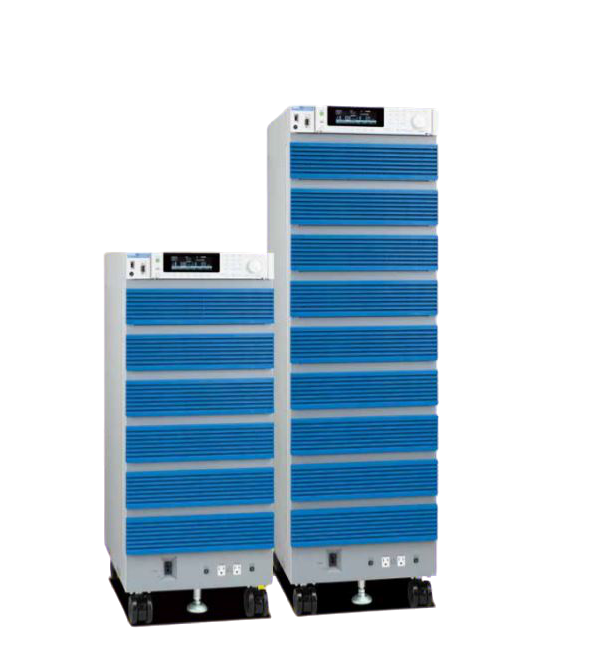

KIKUSUI PCR12000LE2 Multi-output AC Power Supply (12 kVA/ 8 kVA)
Manufacturer: KIKUSUI Model: PCR12000LE2 Guarantee: 12 Month - Request a Quotation
- Contact
- Input:
170 V ~ 250 V, 75A (3-phase, 3-wire, 200V)
324 V to 440 V, 39A (3-phase, 4-wire, 400V)
Frequency: 47Hz to 63Hz
- AC mode output ratings (AC rms)
Voltage: 1 V to 150 V / 2 V to 300 V
Voltage setting range: 0 V to 152.5 V / 0 V to 305.0 V
Voltage setting accuracy: ± (0.3 % of set + 0.6 V)
Max. current (Single phase, poly phase, L range, H range): 120 A, 60 A · 40 A, 20 A
Power capacity (Single phase, Three-phase 4-wire, Single phase 3-wire): 12 kVA · 8 kVA
Frequency: 1 Hz to 999.9 Hz
DC mode output ratings:
Voltage: ±1.4 V to ±212 V / ±2.8 V to ±424 V
Voltage setting range: -215.0 V to +215.5 V / -431.0 V to +431.0 V
Voltage setting accuracy: ±(0.05 % of set + 0.05/0.1 V)
Max. current (Single phase, Single phase 3-wire and Three-phase, L range, H range): 84 A, 42 A · 28 A, 14 A
Power capacity (Single phase, Single phase 3-wire, Three-phase): 8.4 kW · 5.6 kW
- Output Voltage Stability:
Line regulation: Within ±0.1 %
Load regulation: ±0.3 V
Output voltage response speed: 30 µs
- Interfaces: RS232C, USB (Option) , LAN (Option) , GPIB (Option)
- Measurement: A, V, W, F
- Accessories: Setup guide, Quick Reference, Safety information, CD-ROM (User's manual)
