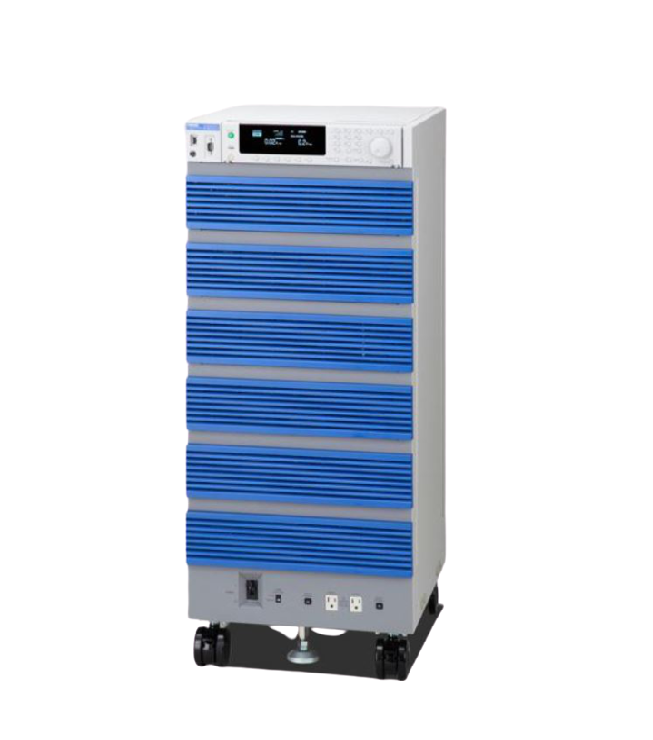

KIKUSUI PCR6000LE Multifunctional AC Power Supply (6 kVA)

- Input:

Voltage & Current:

170 V to 250 V, 64A (1-phase, 2-wire)

170 V ~ 250 V, 38A (3-phase, 3-wire)

324 V ~ 440 V, 21A (3-phase, 4-wire)

Frequency: 47Hz to 63Hz

- AC mode output ratings (AC rms)

Voltage: 1 V to 150 V / 2 V to 300 V

Voltage setting range: 0 V to 152.5 V / 0 V to 305.0 V

Voltage setting accuracy: ± (0.3 % of set + 0.6 V)

Max. current: 60 A, 30 A

Power capacity: 6 kVA

Frequency: 1 Hz to 999.9 Hz

DC mode output ratings:

Voltage: ±1.4 V to ±212 V / ±2.8 V to ±424 V

Voltage setting range: -215.0 V to +215.5 V / -431.0 V to +431.0 V

Voltage setting accuracy: ±(0.05 % of set + 0.05/0.1 V)

Max. current: 42 A, 21 A

Power capacity: 4.2 kW

- Output Voltage Stability:

Line regulation: Within ±0.1 %

Load regulation: Within ±0.1 V, within ±0.2 V

Ripple noise: ≤ 0.25  Vrms

- Interfaces: RS232C, USB (Option) , LAN (Option) , GPIB (Option)

- Measurement: A, V, W

- Protection Functions: Output overvoltage protection AC/AC+DC/ DC mode, Output undervoltage protection AC/AC+DC/ DC mode, Frequency Upper/Lower limit,...

- Accessories: Power cord, Setup guide, Quick Reference, Safety information, CD-ROM

(User's manual)


Details

Datasheet


Manual
