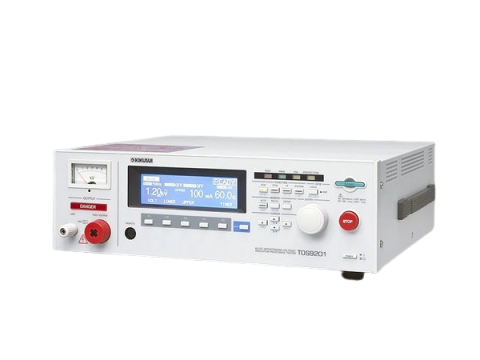

KIKUSUI TOS9201 Hipot and Insulation Resistance Tester (5000VAC, 6000VDC, 100mAAC, 10mADC, 9.99 GΩ)
Manufacturer: KIKUSUI Model: TOS9201 - Contact
Output Voltage Range:
AC: 50 V to 5,000 V
DC: 50 V to 6,000 V
Maximum Output Current:
AC: 100 mA
DC: 10 mA
Insulation Resistance Measurement:
Test Voltage: 25 V to 1,000 V DC
Measurement Range: 0.01 MΩ to 9.99 GΩ
Additional Features:
Ramp-up/ramp-down time control (AC)
Measurement hold function
Offset current canceling
Automatic DC discharge after test
Memory and programmable test conditions
Communication interfaces: GPIB and RS-232C
