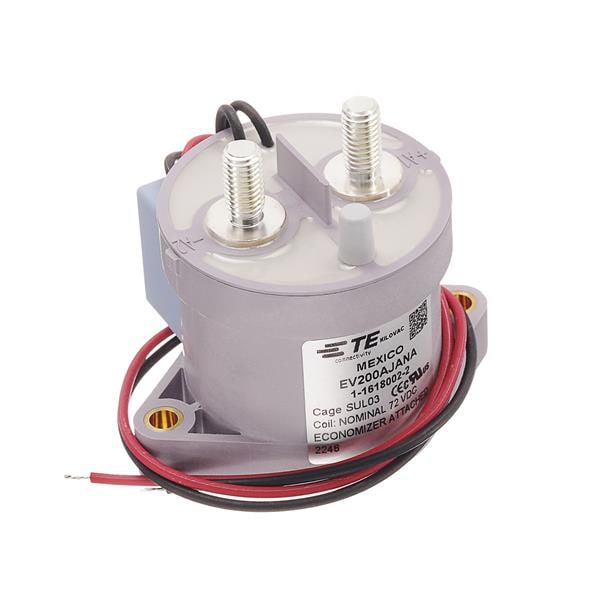

Kilovac - TE Connectivity EV200AJANA High Voltage EV200AJANA=EV200 RELAY, SPST-N
Manufacturer: Kilovac - TE Connectivity Model: EV200AJANA - Contact
Width: 65.6 mm
Height: 72.3 mm
Length: 80.48 mm
Coil Type: Non-Latching
Compliance: CE, C-UR-US
Unit Weight: 501.673 g
Coil Current: 20 mA
Coil Voltage: 95 VDC
Contact Form: SPST (1 Form A)
Current Rating: 500 A
Mounting Style: Bottom Mount
Coil Resistance: 100 Ohms
Coil Termination: Wire Leads
Contact Material: Copper (Cu)
Switching Voltage: 2.2 kVDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Stud
Contact Current Rating: 500 A
