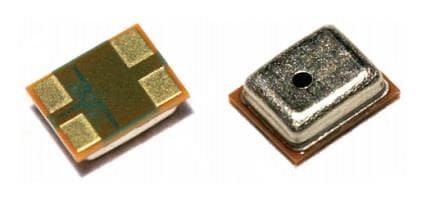

Knowles SPW0442HR5H-1 Silicon SISONIC MEMS MICROPHONE;Analog;Top;59dB SNR;130dB SPL;-42 +/-1dBV;-Hz;66dB PSRR;130;1.8V
Manufacturer: Knowles Model: SPW0442HR5H-1 - Contact
Shape: Rectangular
Width: 2.5 mm
Length: 3.1 mm
Impedance: 500 Ohms
Port Type: Top
Dimensions: 3.1 mm x 2.5 mm x 1 mm
Output Type: Analog
Sensitivity: - 42 dB
Unit Weight: 252.071 mg
Mounting Style: SMD/SMT
Frequency Range: 10 Hz to 10 kHz
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.5 V
Directional Properties: Omnidirectional
Operating Supply Current: 185 uA
Operating Supply Voltage: 3.6 V
SNR - Signal to Noise Ratio: 59 dB
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
