Sources: 4 voltage and 6 current outputs
Frequency range: DC...3 kHz
Transient signals: DC...4 kHz
Phase angle: 0...360°
Voltage outputs
4-phase (L-N): 4 x 0...300 V / 75 VA
1-phase (L-L): 1 x 0...600 V / 150 VA
Current outputs
6-phase: 6 x 0...20 A / 50 VA
3-phase: 3 x 0...40 A / 100 VA
1-phase: 1 x 0...60 A / 100 VA
Low-level signal outputs: 10 separately and independently adjustable outputs, output range 0...10 Vpk
DC output: 12…260 VDC, 50 W, max. 2 A
Binary inputs
Quantity: 8 inputs
Groups: 2 galvanically isolated groups with 4 inputs each
Each group is configurable for measuring dry / wet contacts
Binary outputs: 2 potential-free, galvanically isolated relays
Operation
PC: ARTES testing software for Windows® 7 / 8 / 10 / 11
Stand-alone: 5“ touch screen, 3 function keys, jog wheel

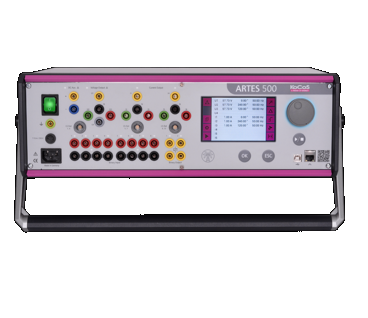

Measurement connections: All the connections are located on the front panel.
This means that ARTES 500 can also be operated in an upright position.
Interfaces: USB, Ethernet
Time synchronization: Internal GPS receiver
Status LEDs: Indication of active current and voltage outputs and of the status of the binary inputs and outputs by LEDs
Supply voltage: 100...265 VAC, 47...63 Hz / 120...265 VDC
Housing: 19“ housing, 3 U, handle serves as stand
Dimensions (mm): 470 x 162 x 326 (W x H x D)
Weight: 13.5 kg
