Sources: 3 voltage and 3 current outputs
Frequency range: DC…3 kHz
Transient signals: DC…4 kHz
Phase angle: 0…360°
Voltage outputs – 3-phase (L-N): 3 × 0…300 V / 75 VA
Voltage outputs – 1-phase (L-L): 1 × 0…600 V / 150 VA
Current outputs – 3-phase: 3 × 0…16 A / 40 VA
Current outputs – 1-phase: 1 × 0…32 A / 80 VA
DC output: 12…260 VDC, 50 W, max. 2 A
Binary inputs – Quantity: 4 inputs configurable for measuring dry / wet contacts
Binary outputs: 2 potential-free, galvanically isolated relays
Operation – PC: ARTES testing software for Windows® 7 / 8 / 10 / 11
Operation – Stand-alone: 5" touch screen, 6 function keys, jog wheel
Measurement connections: All connections located in the control panel
Interfaces: USB, 3 × Ethernet, Wi-Fi
Status LEDs: Indication of active current and voltage outputs and the status of the binary inputs and outputs by LEDs
Supply voltage: 100…265 VAC, 47…63 Hz / 120…265 VDC

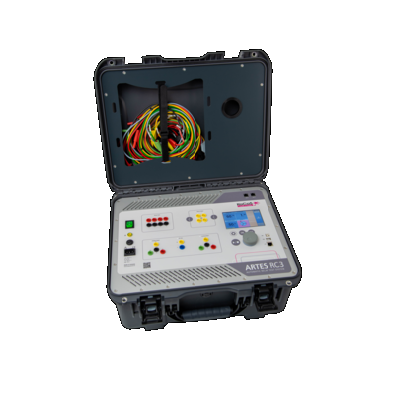

Housing: Hard shell case in accordance with ATA 300, ASTM D4169, MIL-STD-810F
Dimensions: 505 × 257 × 409 mm (W × H × D)
Weight: 15.8 kg
