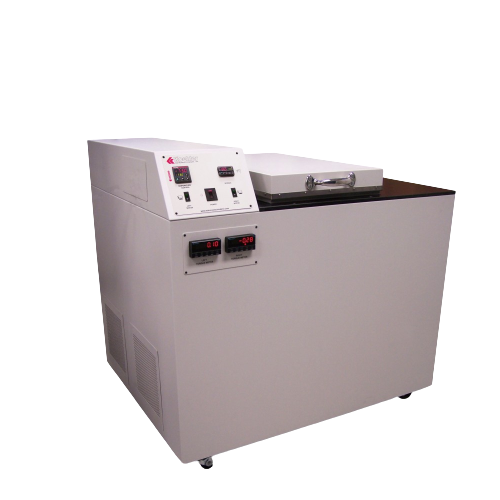

Koehler K18852 Low Temperature Torque Apparatus (ASTM D1478; –54°C)
Manufacturer: Koehler Model: K18852 Guarantee: 12 Month - Contact
The low temperature torque test measures the extent to which a grease sample retards rotation of a bearing assembly at the test temperature.
Specifications
- Conforms to the specifications of: ASTM D1478, D4693, D4950; FTM 791-334
- Cooling range: Standard: –65°F (–54°C)
- Temperature uniformity: ±1°F (±0.5°C)
- Refrigeration: air cooled mechanical cascade hermetic system
- Cabinet: floor-mount, polished stainless steel exterior, rides on swivel casters
Electrical requirements: 230V 50Hz
Dimensions
- lxwxh,in.(cm): 481⁄2x34x451⁄2 (123x86x116)
- Net weight: 597 lbs (270.8 kg)
Shipping information
- Shipping weight: 1005 lbs (455.9 kg)
- Dimensions: 55x47x60 in. (139.7x119.4x152.4cm)
Additional accessories
- K18871 Data Acquisition Package.
- 289-001-006 Test Bearing, 6204, for ASTM D1478
- 308-230-009 Chart Recorder, 115V/230V
