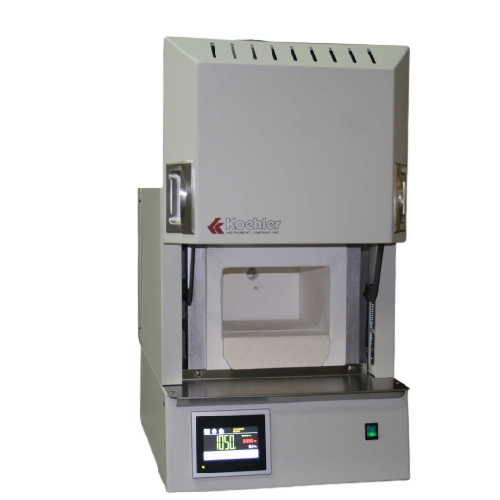

Koehler K24429 Programmable Ashing Furnace (15L, ambient - 1200°C)

Determines the amount of ash in distillate and residual fuels, gas turbine fuels, crude oils, lubricating oils, waxes, and other petroleum products.

Specifications

Conforms to the Specifications of: ASTM D482, D874, D1026, D3174, D4422, D5184

Temperature range: Ambient to 1200°C

Temperature accuracy: ±1°C

Temperature uniformity: ±3°C

Temperature resolution: ±0.1°C

Oven Volume: 0.52 cu. ft. (15L)

Chamber internal dimensions wxdxh,in.(cm): 9x13x7 (22.86x33.02x17.78)

Power: 5500W

Electrical requirements: 230V, 50/60Hz, Single Phase

Dimensions wxdxh,in.(cm): 20x29x24 (50.8x73.7x61)

Net weight: 132 (60kg)

Shipping information

Shipping weight: 188 lbs (85.3 kg)

Dimensions: 48x24x33 in. (121.9x61.0x83.8cm)

Additional accessories

- K24410-1 Steel Collecting Pan, 5L

- K24420-1 Steel Collecting Pan, 15L

- K24430-1 Steel Collecting Pan, 40L

- K24300-1 Evaporation Crucible, Porcelain, 100mL

- K24300-2 Crucible Tong, 300mm

- K24300-3 Gloves, 900°C Max

- K24300-8 Evaporation Crucible, Porcelain, 30mL, pk/6

- K24300-9 Porcelain Lid, for 30mL Crucible, pk/6
