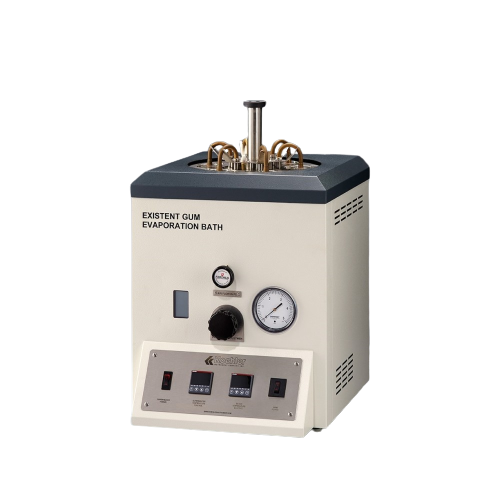

Koehler K33781 Existent Gum Evaporation Bath (3-Unit)

Electrically heated baths for determining existent gum in aircraft turbine fuels by steam-jet evaporation and in motor and aviation gasolines by air-jet evaporation.

Specifications

- Conforms to the specifications of: ASTM D381; IP 131; IP 540; ISO 6246; DIN 51784; FTM 791-3302; NF M 07-004

- Testing capacity: 3 sample beakers

- Maximum temperature: 475°F (246°C)

- Temperature control stability: ±1°F (±0.5°C)

- Bath configuration: machined aluminum block with multiple cartridge heaters

- Heater range: 0-1500W

- Steam generator: Output: 54.1 lbs steam/hr at 212°F

- Bhp Rating: 1.83

- kW Rating: 18

Electrical requirements: 220-240V 50/60Hz, Single Phase, 6.8A

Dimensions

- wxdxh,in.(cm): 32.5x11x19 (83x28x48)

- Net weight: 85 lbs (38.6kg)

Included accessories: Conical Brass Adapters for air/steam jets

Shipping information

- Shipping weight: 168 lbs (76.2kg)

- Dimensions: 34x20x25 in. (86.4x50.8x63.5cm)
