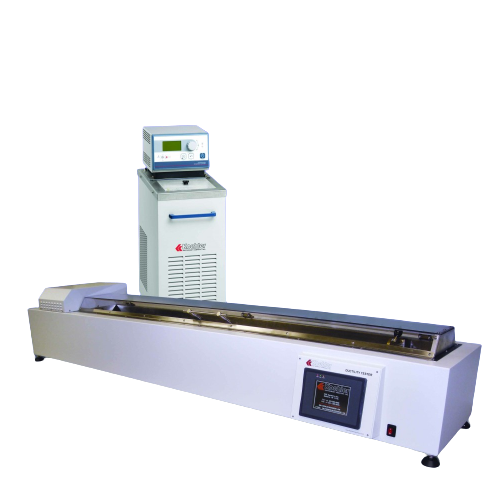

Determines the ductility of a bituminous material
Specifications
- Conforms to the specifications of:
ASTM D113, D5892, D6084, P226; IP 32, 516; DIN 52013, EN 13398; NF T 66-006; AASHTO T 51, T 301; JIS K2207; ANS A37.11; Federal Specification SS-R-406C; USDA Method 5 (BUL 12-16)
- Capacity: 3 molds with samples
- Maximum travel length: 150 cm
- Standard traction speed: 5 cm/min
- Variable traction speed: 0.25 to 7.0 cm/min
- Timer: 1-999 min
Electrical requirements: 220-240V 50Hz
Dimensions
- lxwxh,in.(cm): 861⁄4x19x16 (219.1x48.3x40.6)
Circulation bath: 153⁄4x81⁄4x221⁄2 (219.1x48.3x40.6)
- Net weight: 217 lbs (98.5kg)
Circulation bath: 50 lbs (22.7kg)
Shipping information
- Shipping weight: 368 lbs (167kg)
- Dimensions: 9 3⁄4x 25 1⁄4x 23 1⁄4” (235.6x64.1x59.1cm)
Included accessories
- Circulation Bath
- Remote Temp. Probe, 10 ft. length
- Connection Tubing
- Standard Mold (3)
- Base Plate
- Lexan Cover
Additional accessories
- K80012 Standard Mold
- K80041 Recovery Mold
- K80013 Base Plate
- 250-000-63F ASTM 63F Thermometer, Range: 18 to 89°F
- 250-000-63C ASTM 63C Thermometer, Range: -8 to 32°C
- K80050-SFW Semi-Automatic Ductility Software
