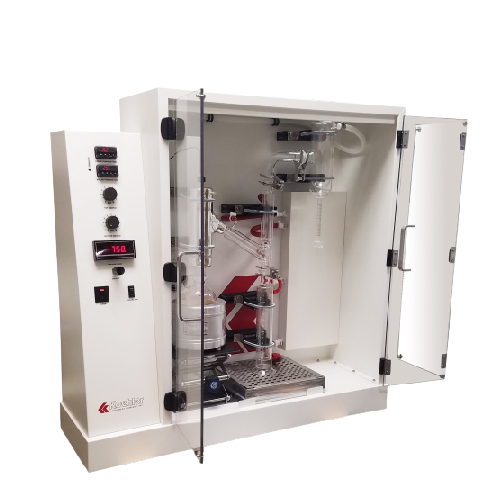

The Koehler VDS5000 Manual Vacuum Distillation System is the latest design for determining, at reduced pressures, the range of boiling points for petroleum products according to ASTM D1160 and related specifications
Specifications
Conforms to the specifications of: ASTM D1160; ISO 6616; JIS K2254
Temperature range: Ambient to 425°C (797°F)
Temperature display: 0.1°C resolution
Temperature accuracy: ±0.5°C
Vacuum range: 0.1 Torr to Atmospheric Pressure (760 Torr)
Vacuum display: 0.1 Torr resolution
Vacuum accuracy: ± 0.2 Torr
External circulator temperature range: Ambient +5°C to 150°C
Electrical requirements: 220-240V 50/60Hz
Dimensions
- WxDxH,in.(cm) Cabinet: 291⁄2 x 91⁄4 x 321⁄2 (75x23.5x82.6)
Control box: 73⁄4 x 91⁄4 x 93⁄4 (19.7 x 23.5 24.7)
- Net Weight: Cabinet: 62 lbs (28.2 kg)
Control box: 21 lbs (9.6 kg)
Shipping Information
- Shipping weight: 104 lbs (47.2 kg)
- Dimensions: 49x34x16 in. (124.5x86.4x40.6 cm)
