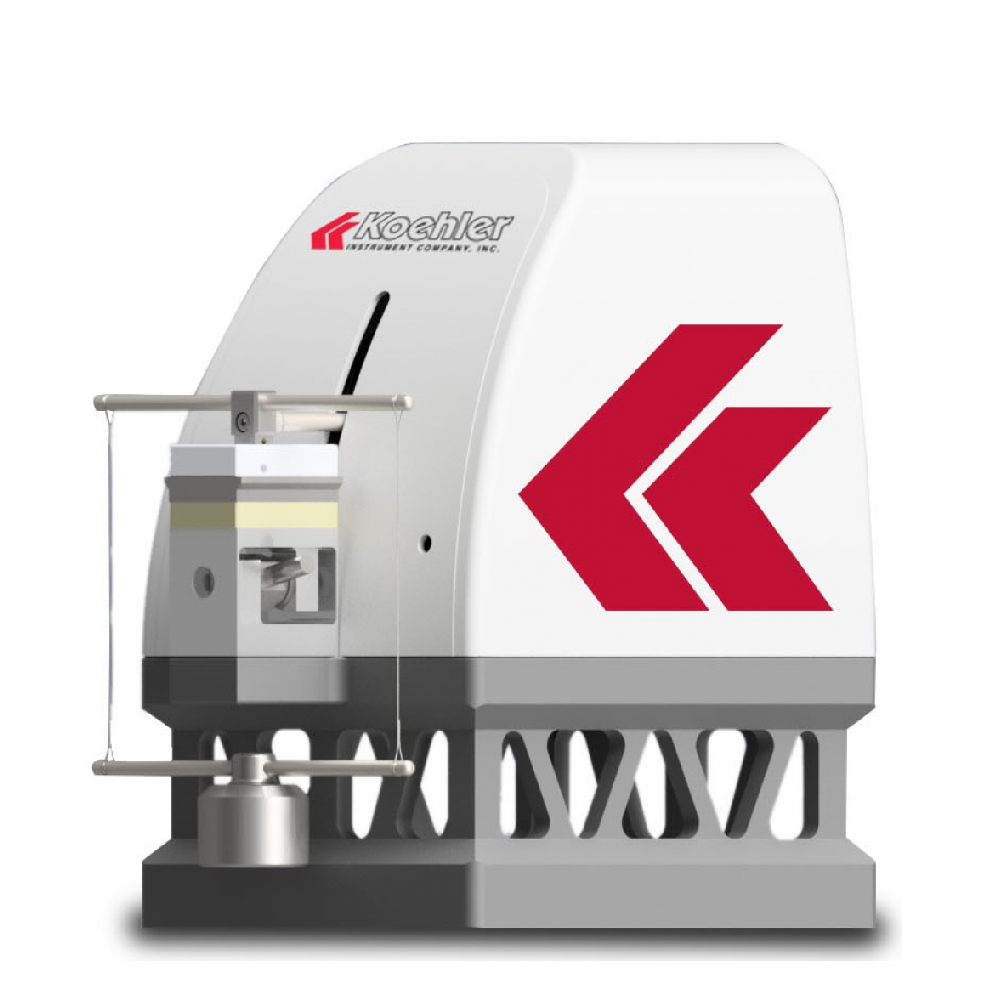

Koehler K93469 High Frequency Reciprocating Rig (1~10N)

For evaluation of the lubricity of diesel fuels using a high-frequency reciprocating rig (HFRR).

Specifications

- Conforms to the Specifications of: ASTM D6079, D7688; ISO 12156; IP 450; EN 590; CEC F-06-A

- Stroke: 20 microns to 2 mm

- Frequency: 10 Hz to 200 Hz

- Test load: 1 N to 10 N through dead weights

- Frictional force: 0 to 10 N

- Temperature range: Ambient to 150 °C

- Test disc size: 10 mm dia. x 3 mm thick

- Test ball size: 6 mm diameter

Power supply: 230V 50Hz 30A

Additional accessories

- K93450-1 Test Plates and Test Balls (100 Pieces / Ea)

- K93460-2 Digital Microscope for Wear Scar Measurement External PC required for wear scar measuring and capture

- K93460-3 Humidity Controlled Cabinet - Custom built to fit the HFRR
