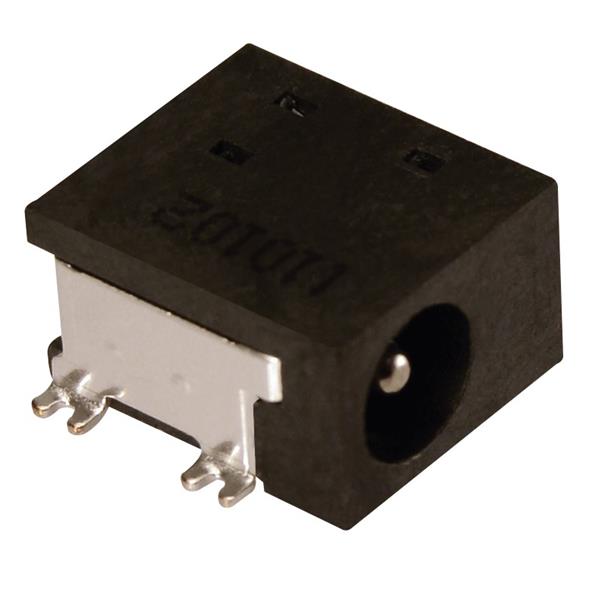

Kycon KLDX-SMT-0201L-BTR Jacks 1.3mm MINI SMT JACK POWER JACK T/R
Manufacturer: Kycon Model: KLDX-SMT-0201L-BTR - Contact
Color: Black
Unit Weight: 1.758 g
Connector Type: DC Power Jack
Contact Gender: Female
Current Rating: 2.5 A
Mounting Angle: Right Angle
Mounting Style: SMD/SMT
Voltage Rating: 24 VDC
Contact Plating: Silver
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: SMD/SMT
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 1.3 mm
Outside Contact Diameter: 6.4 mm
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 25 C
