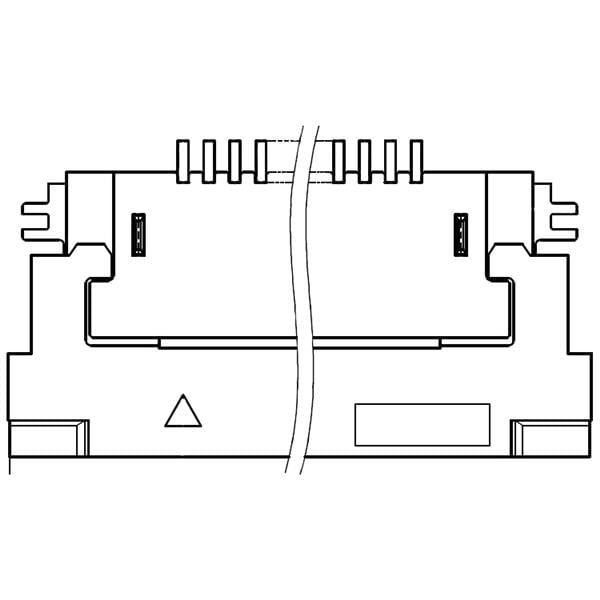

KYOCERA AVX 046240024006800+ Board Mount 24P 0.5mm RA SMD Bot tom Contact
Manufacturer: KYOCERA AVX Model: 046240024006800+ - Contact
Pitch: 0.5 mm
Unit Weight: 1.465 g
Actuation Type: ZIF
Current Rating: 400 mA
Mounting Angle: Right Angle
Mounting Style: SMD/SMT
Voltage Rating: 50 V
Contact Plating: Tin
Contact Location: Bottom Contact
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: SMD/SMT
Flammability Rating: UL 94 V-0
Number of Positions: 24 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
