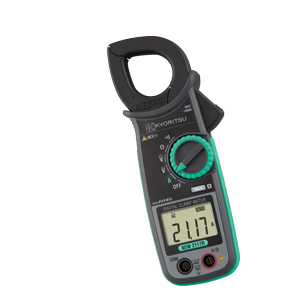

KYORITSU 2117R AC Clamp Meter (AC 1000A)

- AC A: 60.00/600.0/1000A

±1.5%rdg±4dgt [45 - 65Hz]

±2.0%rdg±5dgt [40 - 1kHz]

- AC V: 60.00/600.0V

±1.0%rdg±2dgt [45 - 65Hz] (600V)

±1.5%rdg±4dgt [40 - 1kHz]

- DC V : 60.00/600.0V

±1.0%rdg±3dgt (60V)

±1.2%rdg±3dgt (600V)

- Ω: 600.0Ω/6.000/60.00/600.0kΩ

±1.0%rdg±5dgt (600Ω)

±2.0%rdg±3dgt (6/60/600kΩ)

- Continuity buzzer: 600Ω

- Conductor size: φ33mm max.

- Applicable standards: IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2; IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2, IEC 60529, EN50581 (RoHS)

- Power source: R03/LR03 (AAA) (1.5V) × 2

- Continuous measuring time: Approx.170 hours (Auto power save : approx. 10 minutes)

- Dimensions: 204(L) × 81(W) × 36(D)mm

- Weight: 220g Approx. (including batteries)

- Accessories: 7066A (Test leads), 9079 (Carrying case), R03 (AAA) × 2, Instruction Manual
