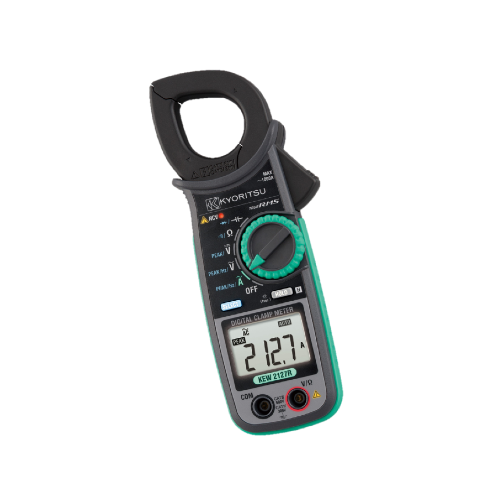

KYORITSU 2127R AC Digital Clamp Meter (AC 1000A)

Hãng sản xuất: Kyoritsu
Model: 2127R

Xuất xứ: Thái lan
Bảo hành: 12 tháng

AC A

60.00/600.0/1000A (Auto-ranging)

±1.5%rdg±4dgt [45 - 65Hz]

±2.0%rdg±5dgt [40 - 1kHz]

AC V

60.00/600.0V (Auto-ranging)

±1.0%rdg±2dgt [45 - 65Hz] (600V)

±1.5%rdg±4dgt [40 - 1kHz] (60/600V)

DC V

60.00/600.0V (Auto-ranging)

±1.0%rdg±3dgt (60V)

±1.2%rdg±3dgt (600V)

Ω

600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ(Auto-ranging)

±1.0%rdg±5dgt (600Ω)

±2.0%rdg±3dgt (6/60/600kΩ)

±3.0%rdg±3dgt (6MΩ)

±5.0%rdg±3dgt (40MΩ)

Continuity buzzer

600Ω (Buzzer sounds below 90Ω)

Capacitance test

1.000/10.00/100.0μF

±3.0%rdg±15dgt(1μF)

±3.0%rdg±10dgt(10/100μF)

Diode test

2.000V ±4%rdg±5dgt Open-circuit voltage:<3.5V

Hz

999.9Hz/9.999kHz (Auto-ranging) ±0.1%rdg±3dgt

Conductor sizeφ33mm max.

Applicable standardsIEC 61010-1 CAT Ⅳ 300V, CAT Ⅲ 600V Pollution degree 2

IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,

IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS)

Power sourceR03/LR03(AAA)(1.5V)x2

Included Accessories7066A (Test leads), 9079 (Carrying case), R03(AAA)×2,

Instruction manual
