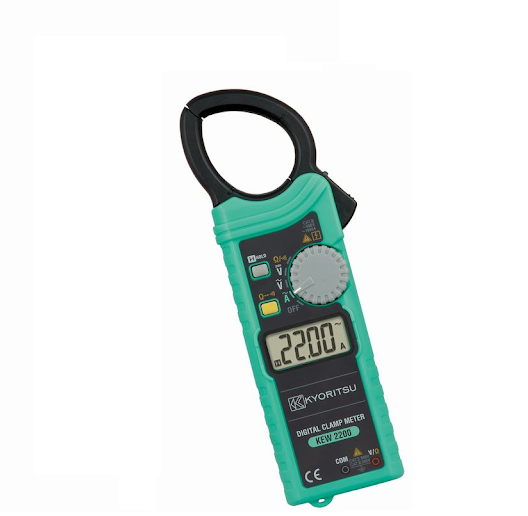

KYORITSU 2200R Clamp meter (AC 1000A; True RMS)

- AC A: 40.00/400.0/1000A (Auto-ranging)
±1.5%rdg±5dgt (45 - 65Hz)
±2.0%rdg±5dgt (40 - 1kHz)
- AC V: 4.000/40.00/400.0/600V (Auto-ranging)
±1.8%rdg±7dgt (45 - 65Hz)
±2.3%rdg±8dgt (65 - 500Hz)
- DC V: 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
±1.0%rdg±3dgt (400mV range is excluded.)
- Ω: 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
±2.0%rdg±4dgt (0 - 400kΩ)
±4.0%rdg±4dgt (4MΩ)
±8.0%rdg±4dgt (40MΩ)
- Continuity buzzer: buzzer sounds below 50±30Ω
- Conductor size: Ø33mm max.
- Applicable standards: IEC 61010-1; CAT IV 300V / CAT III 600V Pollution degree 2 (AC A); CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V); IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC), EN 50581 (RoHS)
- Power source: R03/LR03 (AAA) (1.5V) × 2
- Dimensions: 190(L) × 68(W) × 20(D)mm
- Weight: 120g
- Accessories: 7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2, Instruction Manual
- Optional: 8008 (Multi-Tran)
