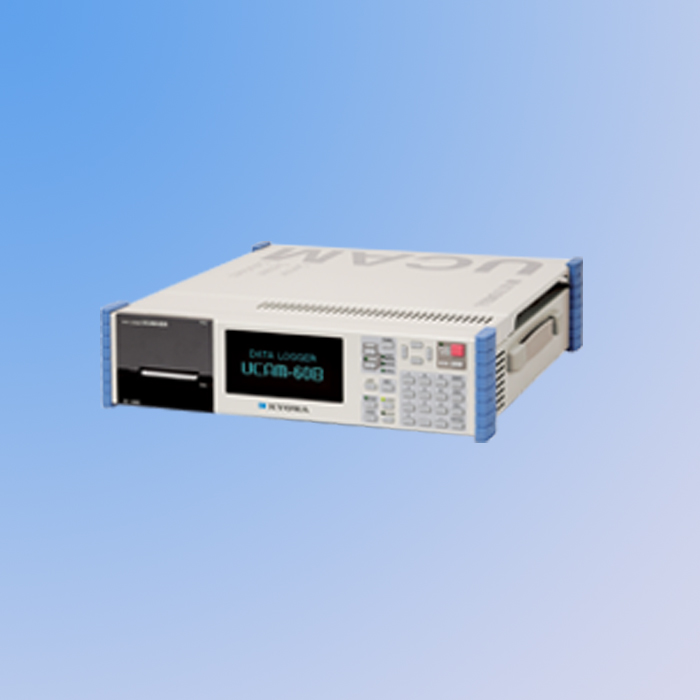

KYOWA UCAM-60B-AC Strain Data Logger

Types

+ UCAM-60B-AC AC only

+ UCAM-60B-DC DC only

TEDS:

+ Interface: IEEE 1451.4 Mixed Mode Transducer Interface Class 2

+ Applicable sensor: Should have information written in accord-ance with IEEE template No. 33; cable length should be 30 m or less

Scanning Speed

Notes:

1. High-resolution mode and high-speed mode are selectable for dedicated scanners only.

2. High-resolution or high-speed mode is available only with full bridge system.

File Conversion: CSV conversion

Coefficient Calculation: Multiplication by calibration coefficients, calibration by TEDS, conversion of measured values to physical quantities, scaling and correction.

Self-diagnosis Functions: Checks display, printer, bridge excitation, lead-wire-off, input/output resistance, insulation resistance, mode, etc. Checking of input/outut resistance and mode is availabe only for dedicated scanners.

Automatic Measurement Functions (Trigger Measurement): A relative value (Certain changing quantity) or an absolute value triggers measurement. In addition to the usual trigger function, a variable trigger function is provided with which the trigger value changes at each step during measurement. With this special function, a trigger value and the number of measurement times (Repeat times) under the trigger condition can be registered for each step to perform a series of automatic measurements in the order of steps.

Automatic Measurement Functions (Interval MeASUREMENT: ): Measurement is automatically performed at preset time intervals.

Automatic Measurement Functions (Trigger Interval Measurement): Combination of trigger measurement and interval measurement.

Channels: Max. 30 with dedicated scanners; Max. 1000 with external scanners connected

Measuring Functions:

+ Initial: Initial values are measured and stored in internal memory (Except for temperatures measured by civil engineering transducers with temperature measuring function).

+ Original: Raw values are measured without subtraction of initial values.

+ Measure: Initial values are subtracted from original values (Except for temperatures measured by civil engineering transducers with temperature measuring function).

+ Easy Measure: Auto zero balancing function is activated.

+ Note: The selected function is applied to all channels. Coefficient

Measuring Targetss: Strain gages, strain gage transducers, civil engineering transducers with temperature measuring function, DC voltage-output or DC current-output instruments, potentiometer sensors, thermal sensors (Thermocouples and platinum resistance thermometer bulbs)

Standard Accessories:

+ AC power cable P-18 with 2-pin conversion plug CM-39 (AC-operated version)

+ DC power cable P-76 (DC-operated version)

+ Recording paper UCAM-60A-RP (1 roll for UCAM-60B only)

+ Screwdriver

+ Spare fuse

+ CD-R (Instruction Manual)

Optional: Recording Paper UCAM-60A-RP (10 rolls/pack)

Sacnning Speed: USB-70B (Standard Mode only) : Standard Mode (50 ms/channel) Besides these, the following speeds can be set for each individual channel: 0.28 s, 0.5 s, 1 s, 2 s, 5 s and 10 s

Auto Measuring Functions (Trigger Measurement): Trigger channel : 1 desired channel

Automatic Measurement Functions (Trigger Measurement): Trigger Value : A desired real number of 6 effective figures or less Reference

Auto Measuring Functions (Trigger Measurement):

+ standard Value : Amount of level shift to determine the first trigger value (Selected from the same range as for the trigger values)

+ Repeat Times : 1 to 9999 (0 for infinite times)

+ Measuring Steps : Maximum 15

Auto Measuring Functions (Interval Measurement):

+ Measuring Start Time : Year/month/day and hour: minute: second

+ Interval setting: Days and hours: minutes: seconds (In a range of 00 and 00: 00: 01 to 99 and 12: 59: 59)

+ Measuring Interval : Days and hours: minutes: seconds (In a range of 00 and 00: 00: 01 to 99 and 12: 59: 59)

+ Repeat Times : 1 to 9999 (0 for infinite times)

+ Available Steps : Maximum 15

Auto Measuring Functions (Trigger Interval Measurement):

+ Measuring Times : Max. 9999

+ Interval Time : Available in a range of 1 second to 99 days 23 hours: 59 minutes: 59 seconds

Storage Functions:

+ Built-in Memory : Internal memory, approx. 7 MB

+ Exterior Memory : Flash ATA card (Optional); the capacity depends on the card.

Sacnning Speed:

+ Exclusive Scanning Unit (Standard Mode): : 50 ms/channel. Scanning speeds stated above are standard maximum speeds in respective modes.

+ Besides these, the following speeds can be set for each individual channel: 0.28 s, 0.5 s, 1 s, 2 s, 5 s and 10 s

+ Exclusive Scanning Unit (High-Conversion Mode): : 280 ms/channel (High-resolution mode)

+ Note: Individually selectable for desired channels

+ Exclusive Scanning Unit (High-speed Mode): : 20 ms/channel (High-speed mode), voltage, Current, only Potentiometer sensors
