Vibration Generator: VG2000/76
Frequency(Hz): 1-3000
Max Exiting Force(kg.f): 2000
Max. Displacement (mmp-p): 76
Max. Acceleration(g): 80
Max. Velocity(cm/s): 200
Payload(kg): 1000
Armature Mass(kg): 25
Armature Diameter(mm): φ320
Cooling Method: Forced Air Cooling
Shaker Weight(kg): 2000
Shaker Dimension L*W*H(MM): 1400*980*1100
Power Amplifier: Amp50k
Power Amplifier Weight(kg): 550
Power Amplifier Dimension L*W*H(MM): 800*550*1920
Utility Requirements: 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW): 40

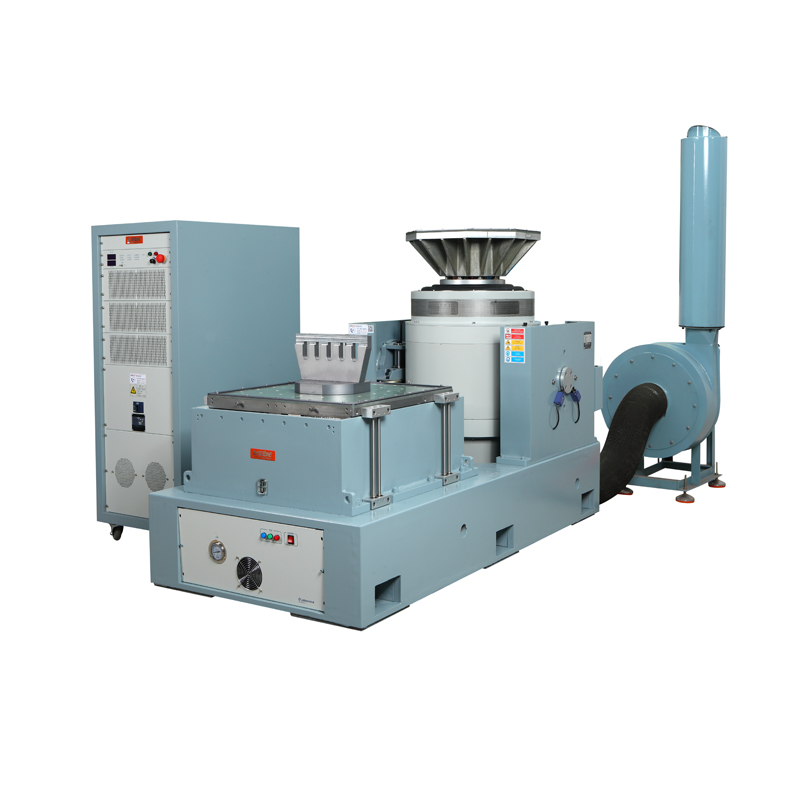

*Product image is for illustrative purposes only
Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
Perfect performance on amplitude variation.
High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
Rapid self-test diagnostics and chain safeguard, high high safety and reliability
Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
Different application on the vertical and horizontal tables.
Simple operation for the controller.
