Amplifier Model: LA50K
Shaker Model: A50T44
Rated Sine Force(KN/Kgf): 50/5000
Rated Shock Force(KN/Kgf): 100/10000
Frequency Range(Hz): 5-2,700
Max. Acceleration Sine/Random(g): 90/60
Max. Velocity(m/s): 2
Max. Displacement Peak-Peak(mm): 76
Max. Payload(kg) :
Armature Diameter(mm): 442
Resonance Frequency (Hz)(±5%）: 2400
Effective Moving Mass（kg): 55
Blower: B153
Blower Power : 15kw
Blower Volume Flow Rate/Pressure: 82m3/min ;7.3kpa
System Power: 75+20kVA

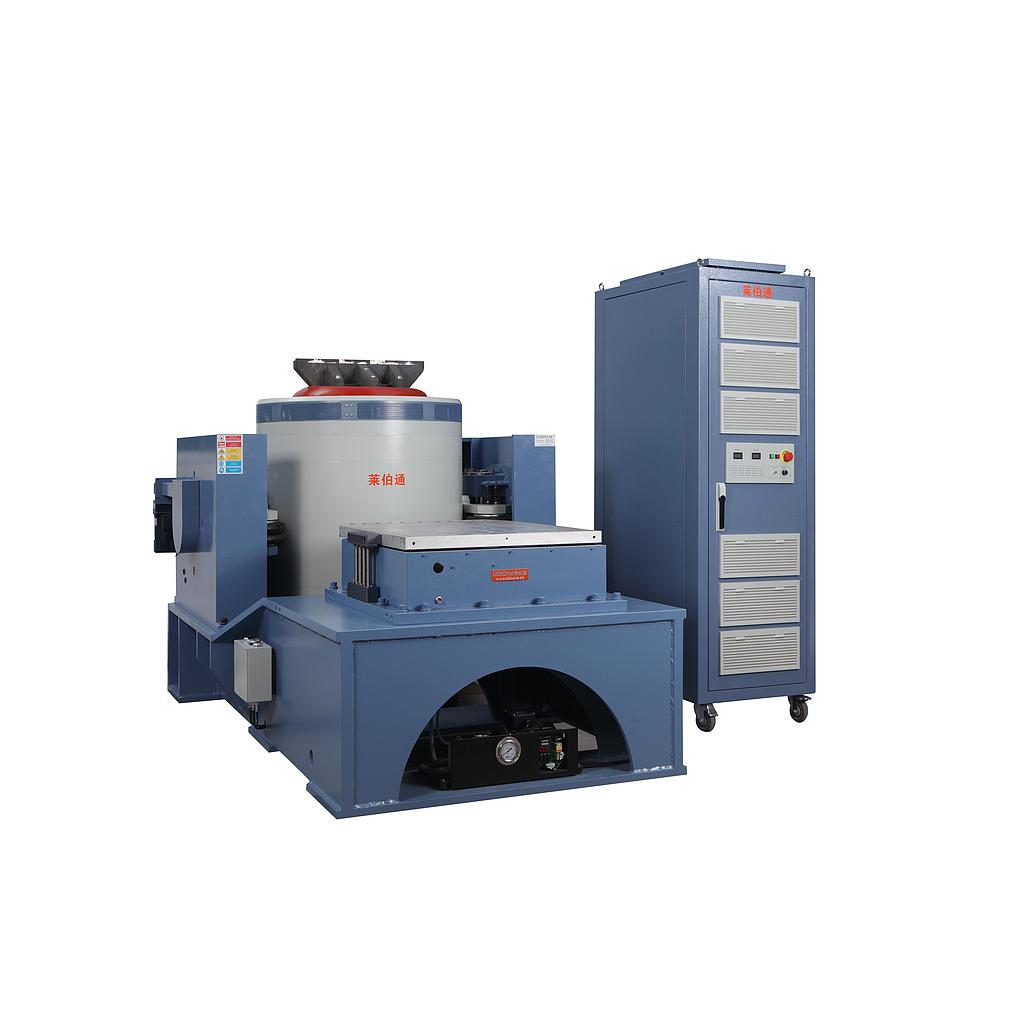

*Product image is for illustrative purposes only
Applications of Vibration Test Machine:
Automotive parts and systems – qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screening
