Gain: 4.1 dbi, 5.9 dBi, 6.2 dBi, 6.5 dBi
VSWR: 1.7:1, 1.6:1, 1.7:1, 1.4:1, 2:1

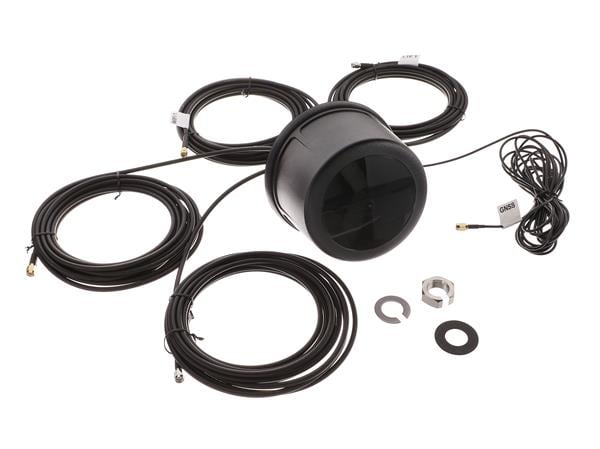

Style: Dome
Width: 87 mm
Length: 132 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 17 ft LMR195M x 4, 17 ft RG174
Application: FirstNet/Public Safety, Passenger Fleet, Commercial Vehicle Fleet, Rail Transit
Unit Weight: 1.2 kg
Cable Length: 5.18 m
Polarization: Vertical Linear
Power Rating: 50 W
Mounting Style: Direct / Permanent Mount
Number of Bands: 6 Band
Center Frequency: 829 MHz, 2205 MHz, 2500 MHz, 5400 MHz, 1561.098 MHz, 1575.42 MHz, 1602 MHz
Mechanical Style: Module
Maximum Frequency: 5.9 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: SMA Male, RP-SMA Male
Protocol - GPS, GLONASS: BEIDOU, GNSS, GPS
Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
