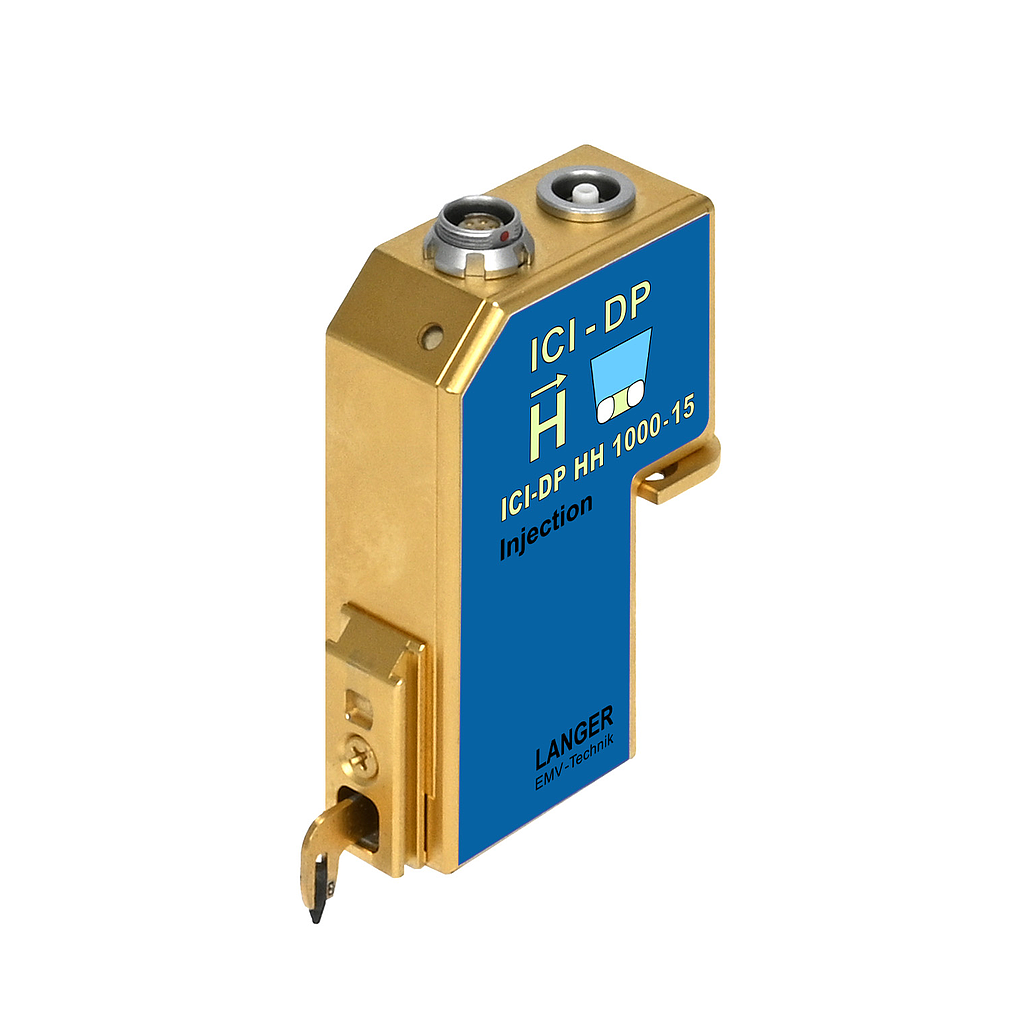

LANGER EMV-Technik ICI-DP HH1000-15 Double Pulse Magnetic Field Source (1000 μm)
Manufacturer: LANGER EMV-Technik Model: ICI-DP HH1000-15 - Contact
Probe head dimensions:: Ø 1000 µm
Pulse parameter:
Max. Pulse voltage: 1000 V
Rise time: 2 ns
Max. current: 16 A
Pulse width: 10 ns
Min. double pulse sequence time: 25 ns
Repetition frequency: 0.1 Hz - 15 kHz (single pulse, < 500 V); 0.1 Hz - 7.5 kHz (double pulse, < 500 V)
Polarity (set by software): + / - ( no polarity change within a double pulse)
Min. trigger pulse delay: 35 ns
Additional trigger pulse delay (Delay-Line): Controlled by BPS 204 supply
Supply voltage: BPS 204
Weight: 190 g
Sizes (L x W x H): (26 x 54 x 71) mm
