Technical parameters
HFW 21 RF Current Transformer
Frequency range: 100 kHz - 1 GHz
Continuous power rating
Current: 10 A
Dielectric strength: 50 V
Sizes (L x W x H): (135 x 32 x 28) mm
HFA 21 RF Bypass
Capacitances: 10 pF ... 100 nF
Dielectric strength: 50 V
Shielding tent (900x500x400 mm)
Attenuated shielding: 45 dB - 50 dB / 30 MHz - 1GHz
Sizes (L x W x H): (900 x 500 x 400) mm
Weight: 12 kg
Near Field Probes
Frequency range: 30 MHz - 3 GHz
CS-ESA software
Operating system: Windows XP/Vista/7 (latest service packs)
PA 203 preamplifier
Frequency range: 100 kHz - 3 GHz
Amplification: 20 dB
Supply voltage: 12 V DC
Current input: 50 mA
Max. input power: +13 dBm

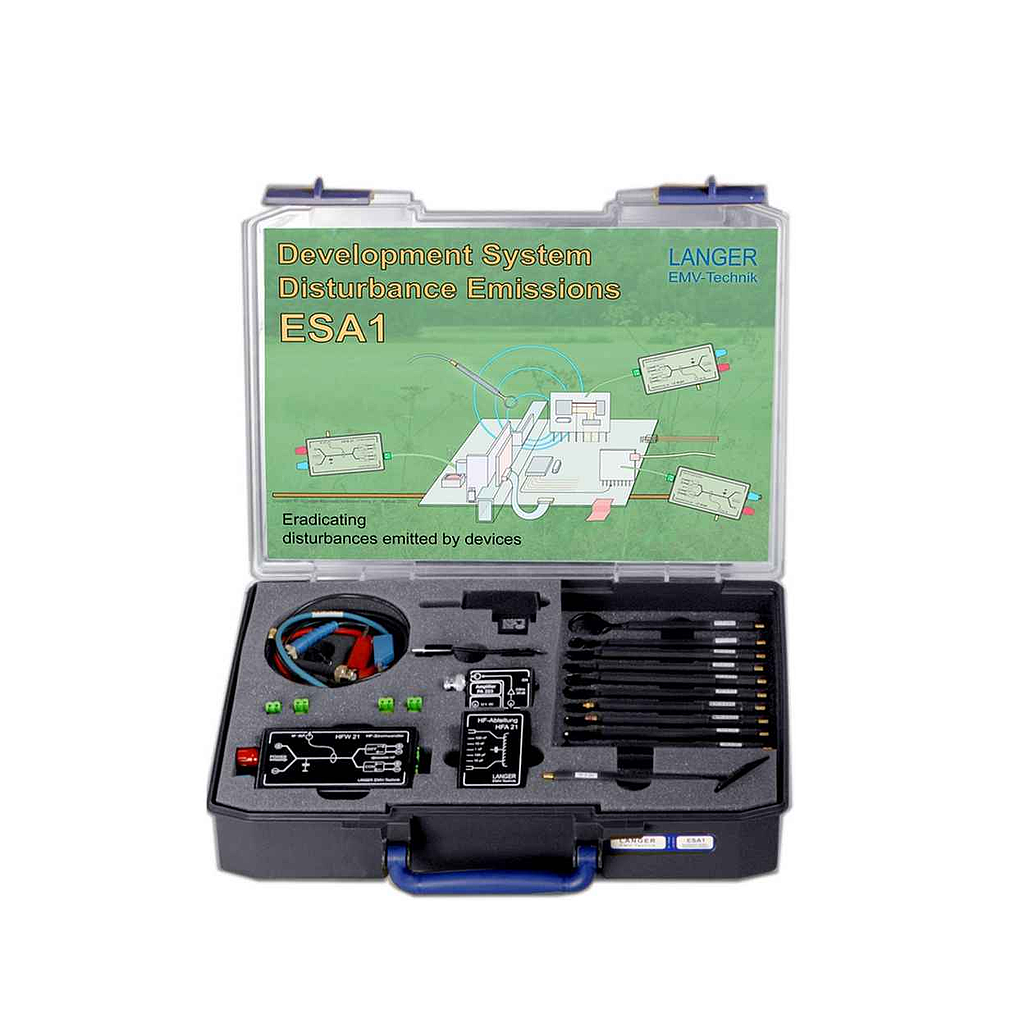

Scope of delivery
1x CS-ESA set, ChipScan-ESA Software / USB
1x Dongle, Licence Dongle
1x HFW 21, RF Current Transformer
1x HFA 21, RF Bypass
1x Z23-1 set, Shielding Tent (900 x 500x 400) mm
1x PA 203 BNC, Preamplifier 100 kHz up to 3 GHz
1x RF-B 0.3-3, H-Field Probe mini 30 MHz up to 3 GHz
1x RF-B 3-2, H-Field Probe 30 MHz up to 3 GHz
1x RF-E 02, E-Field Probe 30 MHz up to 1.5 GHz
1x RF-E 05, E-Field Probe 30 MHz up to 3 GHz
1x RF-E 10, E-Field Probe 30 MHz up to 3 GHz
1x RF-R 0.3-3, H-Field Probe mini 30 MHz up to 3 GHz
1x RF-R 3-2, H-Field Probe 30 MHz up to 3 GHz
1x RF-R 50-1, H-Field Probe 30 MHz up to 3 GHz
1x RF-R 400-1, H-Field Probe 30 MHz up to 3 GHz
1x RF-U 2.5-2, H-Field Probe 30 MHz up to 3 GHz
1x RF-U 5-2, H-Field Probe 30 MHz up to 3 GHz
1x ESA1 acc, Accessories
1x ESA1 case, System case
1x ESA1 m, User Manual
Short description
The ESA1 is a system of EMC tools for measuring the interference of assemblies and devices. The CS-ESA software allows the developer to quickly and comprehensively suppress interference affecting the DUT. Interference measurements taken during the development stage with ESA1 are proportional to the results from far-field measurements or from measurements with artificial networks. With the ESA1 tools disturbance sources can be localized, effects can be detected, and EMC measures individually determined. The effects of improvements implemented by ESA1 are proportional to the results from far-field measurements. ESA1 is designed for use at the developer’s working place.
