LANGER EMV-Technik NNB 21 set Line Impedance Stabilisation Network
Manufacturer: LANGER EMV-Technik Model: NNB 21 set - Contact
Technical parameters
Frequency range: 100 kHz - 1 GHz
DC resistance: < 20 mΩ
Internal attenuation: 10 dB
Measuring channels: 2
Continuous power rating
Current: 10 A
Dielectric strength: 50 V
Weight: 400 g

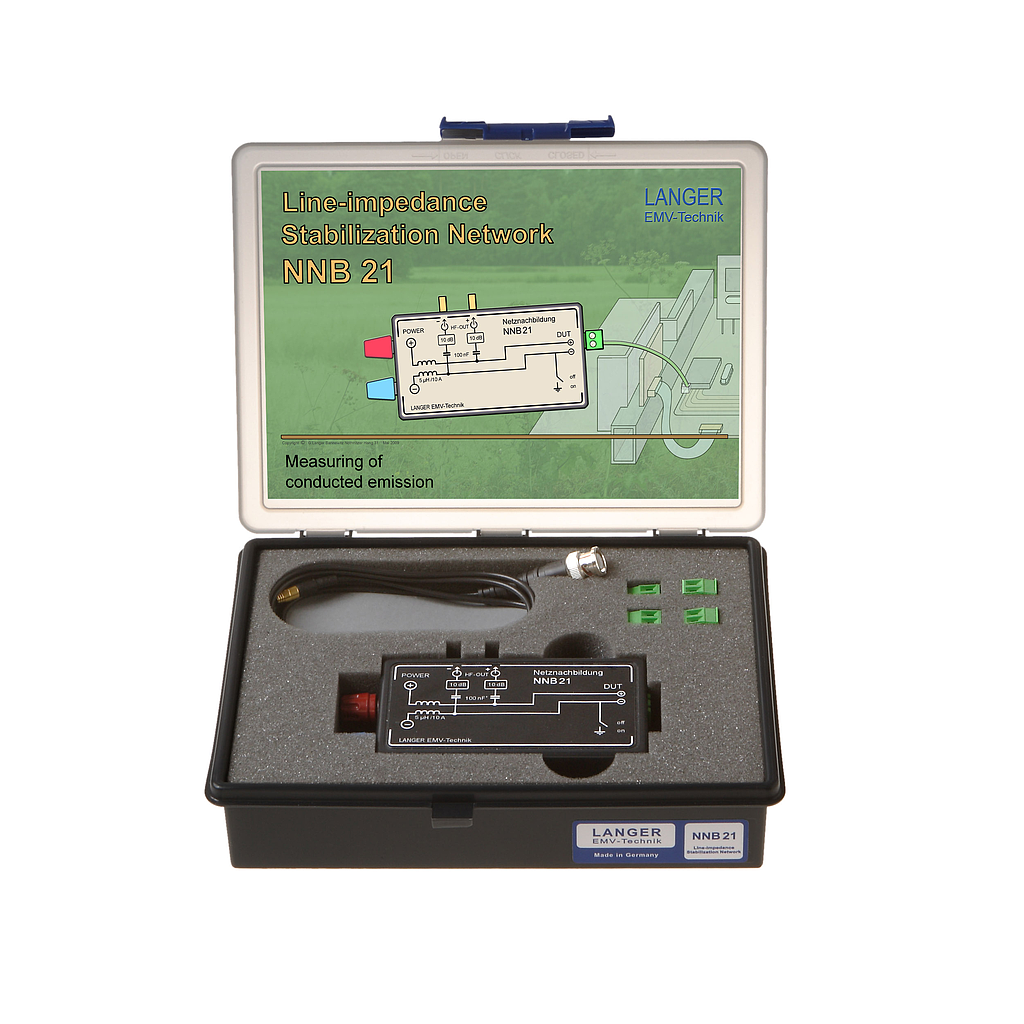

Scope of delivery
1x NNB 21, Line Impedance Stabilisation Network
1x SMB-BNC 1 m, SMB-BNC Measurement Cable
1x NNB 21 acc, Accessories
1x NNB 21 case, System Case
1x NNB 21 m, NNB 21 Set User Manual
Short description
The NNB 21 line impedance stabilisation network is designed for measuring conducted
disturbance emission of a device under test according to the standard CISPR 25/ISO 7637.
It measures the RF interference, which couples into the vehicle electrical system. Measurements during the development in a frequency range from 100 kHz to 1GHz can be carried out.
