Technical parameters
OE 150 Optical Receiver
Transmission range: DC ... 50 Mbps
Optical fibre connector: Ø 2.2 mm
Supply voltage: 12 V / 100 mA
Optical fibre length: 1 m - 20 m
Connector - output: BNC-Stecker, 5 V HCMOS
S25 Optical Sensor
Transmission range: DC ... 50 Mbps
Optical fibre connector: Ø 2.2 mm
Supply voltage: 3 V ... 5 V
Current input: 30 mA
Scope of delivery
1x OE 150, Optical Receiver
1x S25, Optical Sensor (50 Mbps)
1x LWL Ø 2.2 mm 1.5 m, Optical Fiber Single 1.5 m
1x NT FRI EU, Power Supply Unit
1x OSE 150-1 acc, Accessories
1x OSE 150-1 case, System Case
1x Digital m, OSE User Manual
Short description

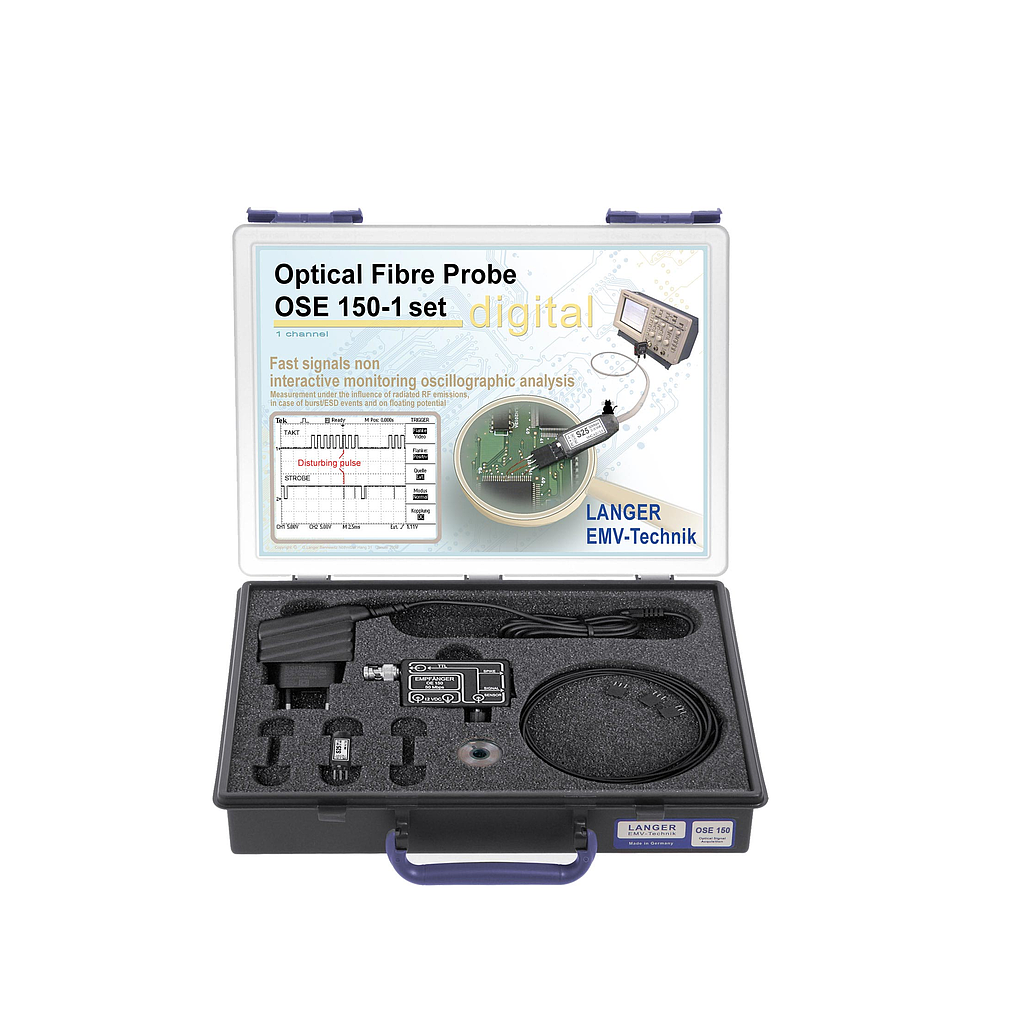

The OSE 150-1 set is used to transmit digital signals from a disturbed device under test (EFT/burst interference). The set consists of one sensor which detects logical signals and transforms them into optical signals. The light signals are transmitted to the optical receiver via a fiber optical cable. The receiver transforms them into digital electric signals. These can be visualized with an oscilloscope or can be used for the control of other devices.
The light signals are transmitted to the optical receiver via a fiber optical cable. The system is suitable for signal monitoring from a anechoic chamber, a shielded RF chamber or in an EMC test lab. The optical transmission system allows EMC-optimizing of hard- and software, because disturbed signals can be easily detected.
