Technical parameters
OE 150 Optical Receiver
Transmission range: DC ... 50 Mbps
Optical fibre connector: Ø 2.2 mm
Supply voltage: 12 V / 100 mA
Optical fibre length: 1 m - 20 m
Connector - output: BNC-Stecker, 5 V HCMOS
S25 Optical Sensor
Transmission range: DC ... 50 Mbps
Optical fibre connector: Ø 2.2 mm
Supply voltage: 3 V ... 5 V
Current input: 30 mA
Scope of delivery
1x OE 150, Optical Receiver
1x S25, Optical Sensor (50 Mbps)
1x LWL Ø 2.2 mm 6m, Optical Fiber Single 6m
1x NT FRI EU, Power Supply Unit
1x OSE 150-2 acc, Accessories
1x OSE 150-2 case, System Case
1x Digital m, OSE User Manual
Short description

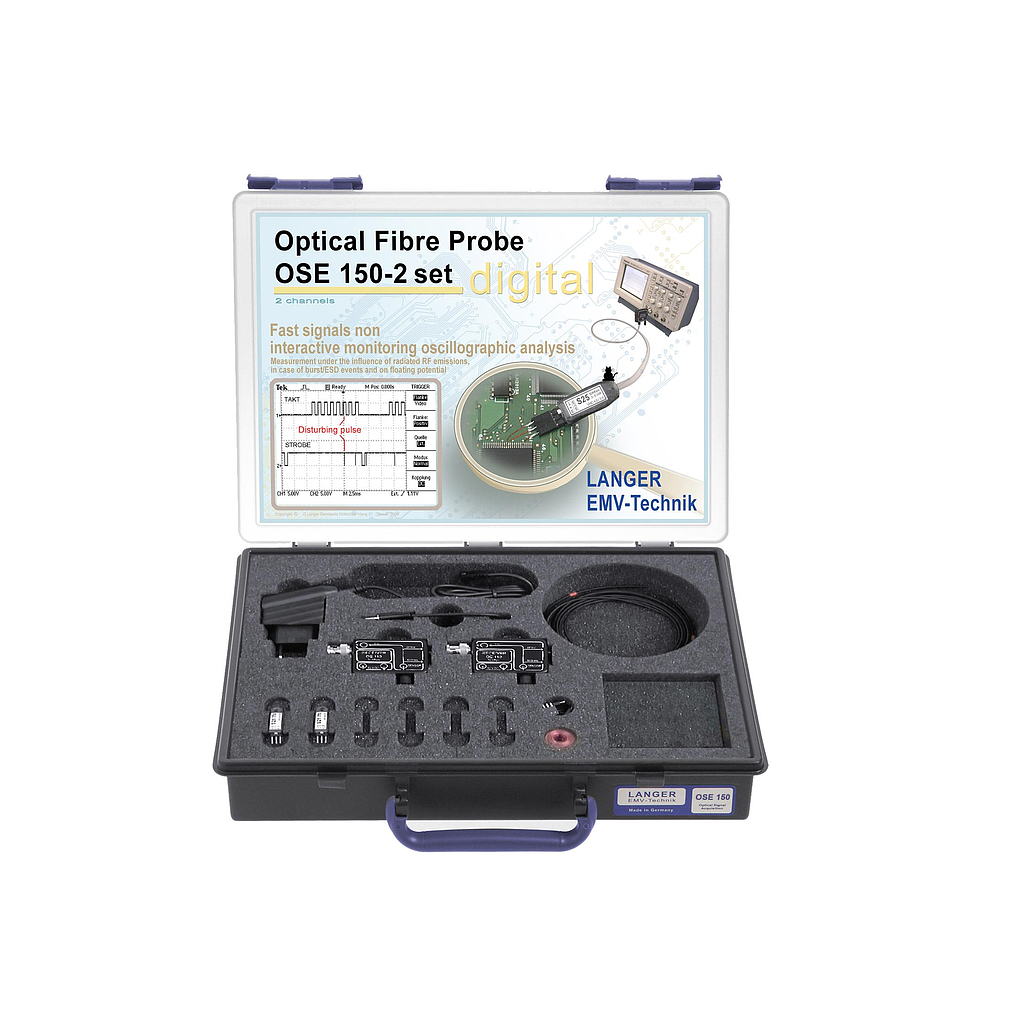

With the OSE 150-2 set it is possible to potentially free oscilloscograph digital signals under EFT/burst interference. Disturbed signals from the device under test can be easily detected.
The set consists of two single sensors which are used to detect two digital signals within the device under test. It is connected via two fiber optical cables and two receivers to the oscilloscope. Inside the device under test a sensor transforms measured logical signals into light signals.
Different types of sensors with different measuring ranges are available for the detection of logical signals in the device under test. The light signals are transmitted to the optical receiver via a fiber optical cable. The receiver transforms them into digital electric signals. These can be visualized with an oscilloscope or can be used to control other devices. The system is suitable for signal monitoring from an anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hard- and software can be EMC-optimized.
