Scope of delivery
1x CB 0708, Connection Board
1x CB Control, Connection Board Control Software/ USB
1x CU 22, Control Unit
1x GND 25, Ground Plane
1x GNDA 01, Ground Adapter 22.9 mm x 22.9 mm
1x GNDA 02, Ground Adapter 32.9 mm x 32.9 mm
1x GNDA 03, Ground Adapter 22.9 mm x 68.3 mm
1x GNDA 04, Ground Adapter 45.8 mm x 68.3 mm
1x OA 4005, Oscilloscope Adapter
1x DM-CAM, Digital Microscope Camera
1x SGA 30, Probe Adapter
1x SGA 45, Probe Adapter
1x TH 22, Probe Head Holder
1x PMK ARM 130, Universal Holder
1x USB-AB, USB Cable Type A-B
1x NT FRI EU, Power Supply Unit
1x ICE1 acc, Accessories
1x ICE case, System Case
1x ICE1 m, ICE1 Set User Manual
Short description

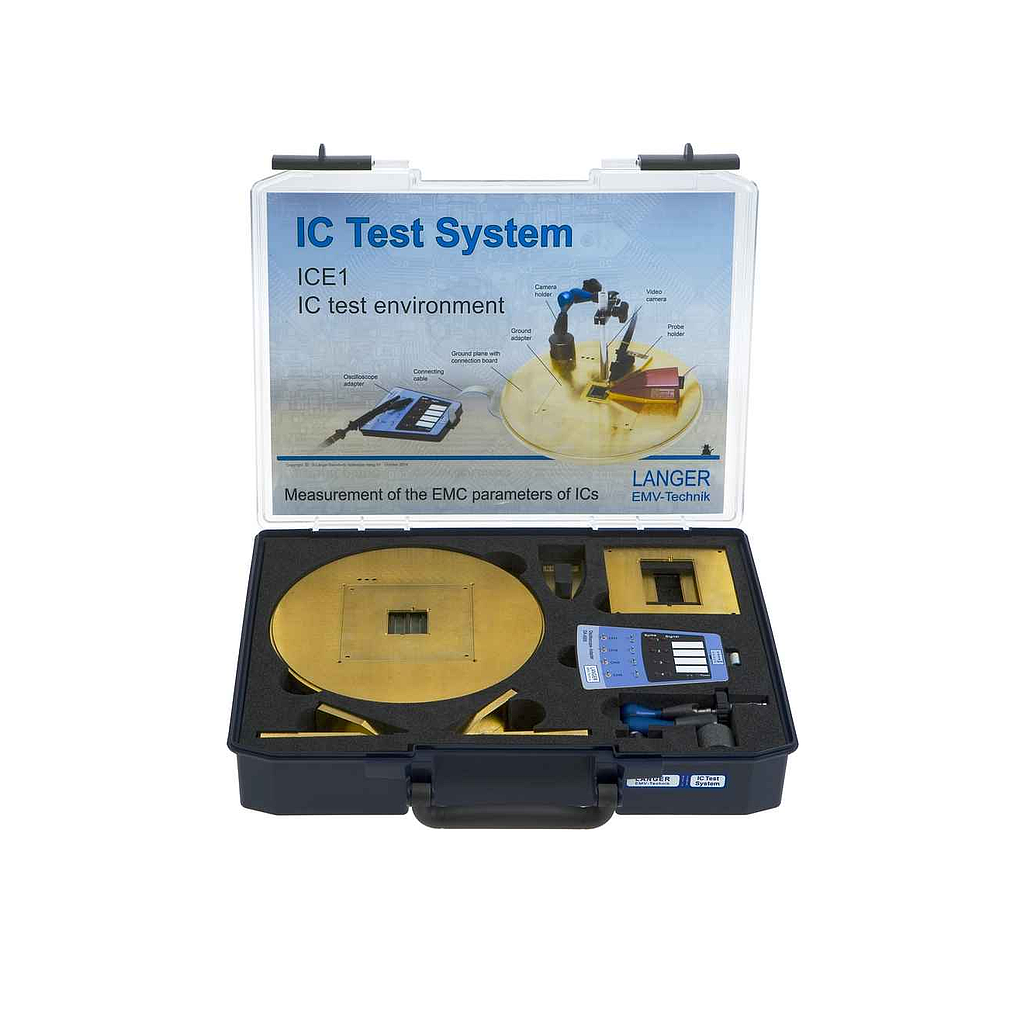

The IC test system is designed for the measuremet of EMC behavior of circuits (ICs) at specific radiated or conducted disturbance influences and for transmission measurements. The test IC is tested in operation. The ICE1 test environment generates the functional environment of the test ICs. The respective measuring task is done with the appropriate probe set. These sets are not included in the scope of delilvery.
The test IC is installed on the test PC board. The costumer can prepare the test PC board (IC test instructions of Langer EMV-Technik GmbH) or the costumer can place an order at Langer EMV-Technik GmbH. The PC board is inserted into the GND 25 ground plate and via a connector connected to CB 0708 connecting board. Other ICE1 set components are: different ground adapter for testing different PC boards, connection board control software, an oscilloscope adapter for transforming measured signals in order to visualize them at the oscilloscope. Additional equipment for setting up IC test stations are included in the scope of delivery as well.
