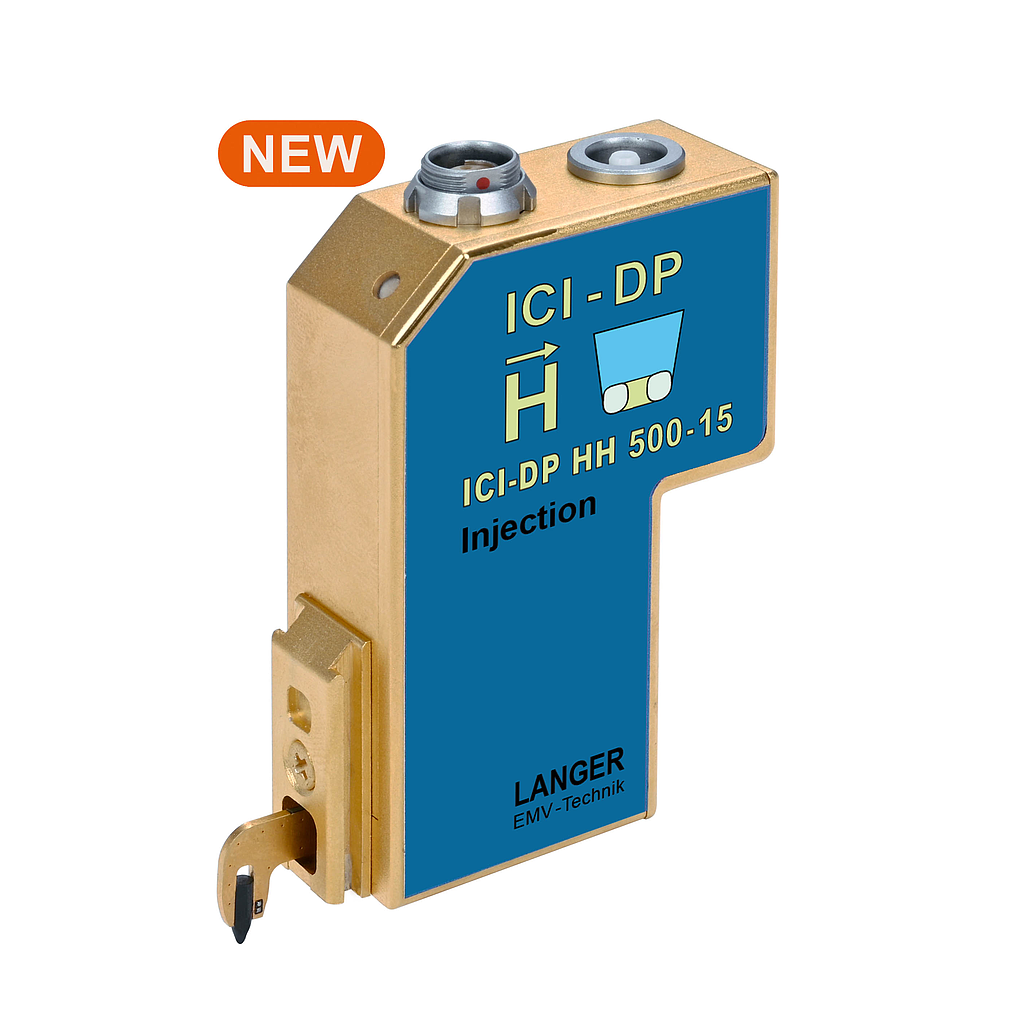

LANGER EMV-Technik ICI-DP HH500-15 Double Pulse Magnetic Field Source

Technical parameters

Probe head dimensions: Ø 500 µm

Pulse parameter

Max. Pulse voltage: 1000 V

Rise time: < 2 ns

Max. current: 16 A

Max. magnetic flux density: 200 mT

Pulse width: 10 ns

Min. Double Pulse Delay: 25 ns

Repetition frequency: 0.1 Hz - 20 kHz (single pulse); 0.1 Hz - 15 kHz (double pulse)

Polarity (set by software): + / - ( no polarity change within a double pulse)

Min. trigger pulse delay: 35 ns

Additional trigger pulse delay (Delay-Line): Controlled by BPS 204 supply

Supply voltage: BPS 204

Weight: 190 g

Sizes (L x W x H): (26 x 54 x 71) mm
