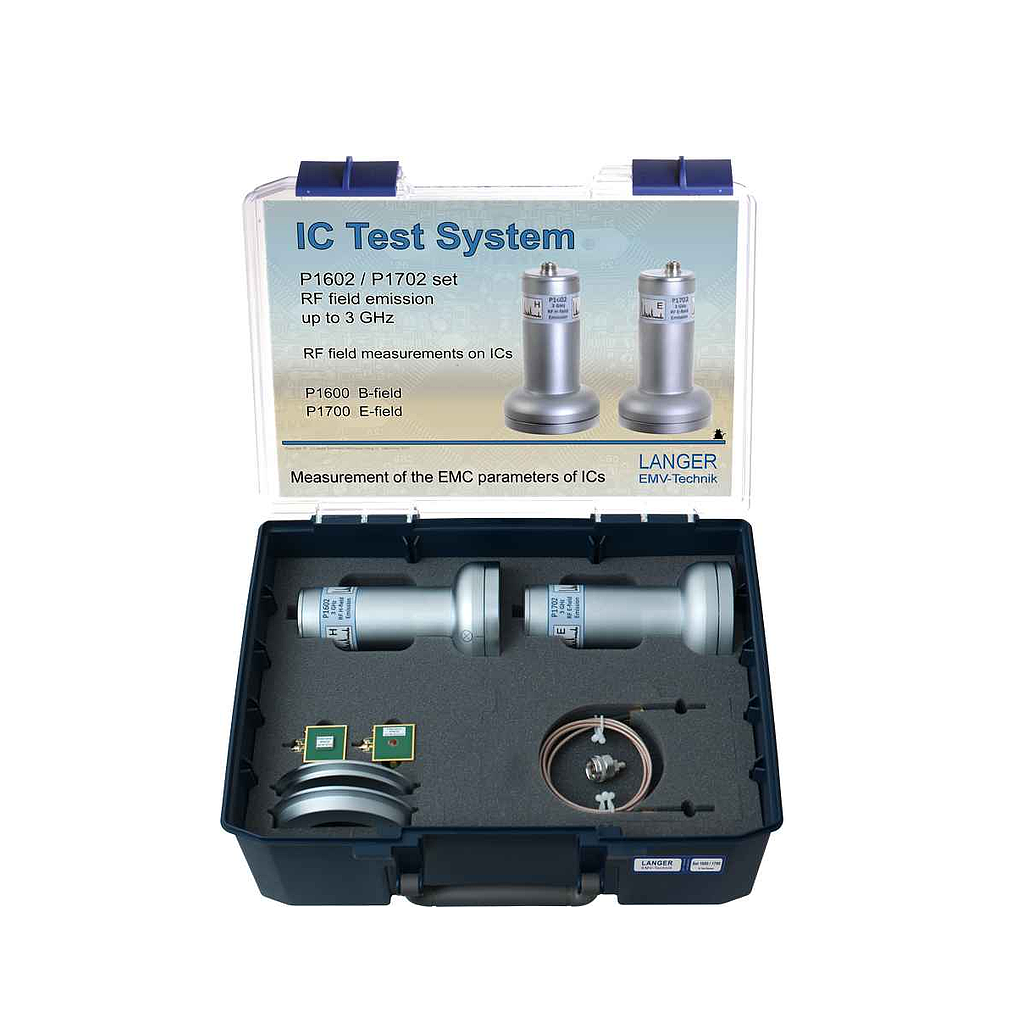

Scope of delivery
1x P1602, RF Magnetic Field Probe
1x P1702, RF E-Field Probe
1x CS-ESA set, ChipScan-ESA Software / USB
1x EPM 02, dE/dt Field Meter
1x BPM 02, dB/dt Field Meter
1x D70 h03, Spacer Ring, 3 mm
1x D70 h10, Spacer Ring, 10 mm
1x FKE 30, Field Chamber Insert
1x SMA-SMA 1 m, SMA-SMA Measuring Cable
1x SMA-SMB 1 m, SMA-SMB Measuring Cable
1x N-SMA, Adapter
1x P1600 / P1700 case, System Case
1x P1600 / P1700 m, P1602 / P1702 Set User Manual
Short description
The RF field emission probe set consists of a magnetic field probe and an electric field probe. They are used to measure the respective radiated near fields of an IC in operation. The measured data help to assess separately the emissions of an IC according to field types.
Measurements and all calculations are carried out with the software ChipScan-ESA.
